Curve: Create 3D Line
Function
Create straight lines of the edge type in space using 3D coordinates.
Call
Main Menu : Geometry > Curve > Create 3D > Line...
<3D Line>
Location

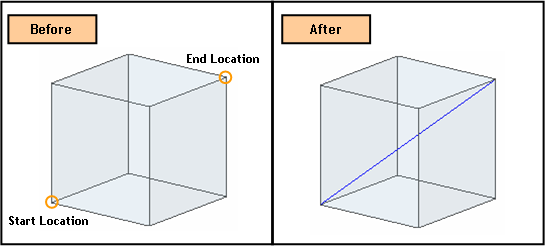

Enter the coordinates of the Start and End locations. The coordinates are expressed in different forms noted below.
Input Start Location
Specify the coordinates of a Start Location [(ABS x, y, z)].
Input End Location
Specify the coordinates of an End Location [(ABS x, y, z), (REL dx, dy. dz)].
<Methods of Entering Coordinates>
ABS x, y. z
Enter 3-D coordinates for an absolute location in space.
REL dx, dy, dz
Enter a distance relative to the Start Location using 3-D coordinates.
When we enter coordinates using the mouse, the coordinates are automatically entered by a left-click on the desired point, without having to press the Apply button. However, when coordinates are typed in, either the Enter key or the Apply button needs to be pressed.
Note
When we enter coordinates using the mouse, the coordinates are automatically entered by a left-click on the desired point, without having to press the Apply button.
However, when coordinates are typed in, either the Enter key or the Apply button needs to be pressed.
