Check the defined
construction stage as a video. It can be used in analyses
that incorporate construction stages (Static/Slope analysis,
Seepage/Consolidation analysis).
▒Methodology

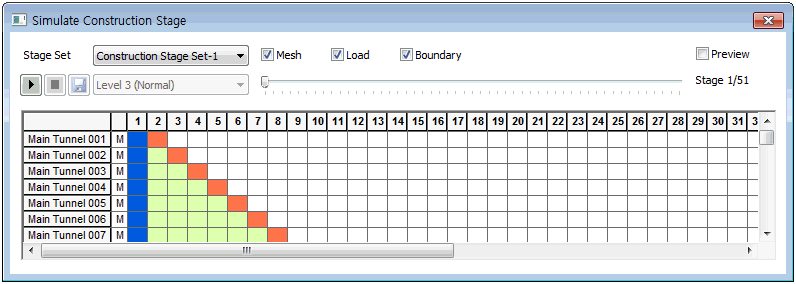

Specify
the defined construction stage set and click the
button
to play the construction stage video. The video
is created by capturing the whole work screen.
Unwanted frames can be inserted if a different
dialog box is open above the model.
Check the [Mesh],[Load]
and [Boundary] to check the activated/deactivated
data of the construction stage.
Check the defined
construction stage as a video. It can be used in analyses
that incorporate construction stages (Static/Slope analysis,
Seepage/Consolidation analysis).
button
to play the construction stage video. The video
is created by capturing the whole work screen.
Unwanted frames can be inserted if a different
dialog box is open above the model.
