Model Data Text Output

• Function

Arrange and produce the model input data such as loading conditions, material properties, section properties, etc for output calculations.

• Call

From the Main Menu select File > Model Data Text Output

• Usage

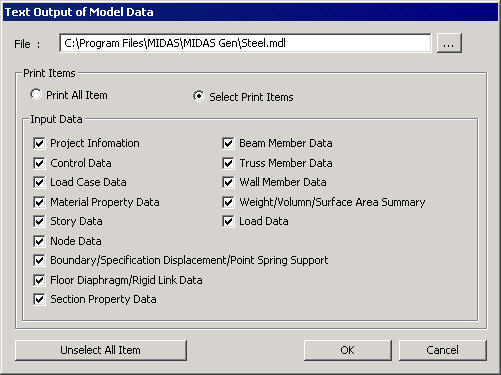

Text Output of Model Data dialog box

File

Specify the path and filename under which Text Output is saved. Simply click the button to specify the path and filename.

Print Items

Select the input data to produce.

Print All Item: Produce all the items listed in the Input Data.

Select Print Items: The user can select the items to display.

Input Data

Note
Shear modulus of elasticity is calculated and displayed based on the Poisson’s ratios in the Property Data of Model Data Text Output.
