Mirror Nodes

Move or copy nodes symmetrically with respect to a particular Mirroring Plane.

From the Main Menu select Model > Nodes > Mirror.

Select Geometry > Nodes > Mirror in the Menu tab of the Tree Menu.

Click Mirror Nodes in the Icon Menu.

Shortcut key: [Ctrl]+[Alt]+6

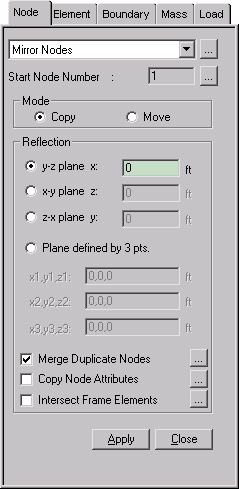

Click to the right of Mirror Nodes: Display the Node Table

Start Node Number

Enter a starting node number for the newly created nodes. This number is auto-set to the largest node number in use +1. To modify this item, click and select on option to specify a desired number.



Mode

Copy: To copy nodes

Move: To move nodes



Reflection

Assign the mirroring plane

y-z plane: Mirroring plane is parallel to the y-z plane

x: x coordinate of the mirroring plane

x-y plane: Mirroring plane is parallel to the x-y plane

z: z coordinate of the mirroring plane

z-x plane: Mirroring plane is parallel to the z-x plane

y: y coordinate of the mirroring plane

Plane defined by 3 pts.: Mirroring plane is an arbitrary plane

x1, y1, z1: x, y, z coordinates of the 1st point defining the mirroring plane

x2, y2, z2: x, y, z coordinates of the 2nd point defining the mirroring plane

x3, y3, z3: x, y, z coordinates of the last point defining the mirroring plane

The coordinates of the three points may be directly typed in on the keyboard. Alternatively, click the relevant entry field and the desired point in the working window to enter the x, y, z coordinates.



Merge Duplicate Nodes
Merge overlapping nodes to single nodes if new nodes coincide with existing nodes. Click to modify the Merging Tolerance.



Copy Node Attributes
Select the option whether to copy the attributes (nodal boundary conditions, nodal concentrated loads, etc.) to the nodes being copied. Click to assign desired attributes selectively.



Intersect Frame Elements
Select the option whether to divide the existing line (beam & truss) elements at the newly created nodes that intersect the elements. Click to modify Intersecting Tolerance.
