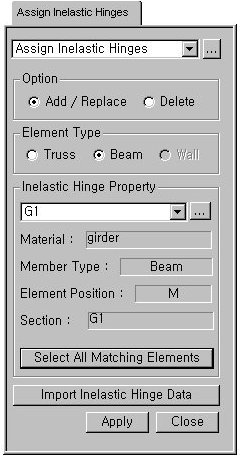

Option
Add/Replace: Add new or replace previously defined inelastic hinge properties for the selected elements.
Delete: Delete previously defined inelastic hinge properties for the selected elements.
Element Type
Select a type of elements for which inelastic hinge properties will be assigned.
Truss: Assign inelastic hinge properties to truss elements.
Beam: Assign inelastic hinge properties to beam elements.
Inelastic Hinge Property
Select an inelastic hinge property to be assigned.
Material
The material type entered for the selected inelastic hinge property is
displayed.
Member Type
The member type entered for the selected inelastic hinge property is displayed.
Element Position
If the material is RC and the member type is Beam, the location of reinforcing
information on the elements entered in the selected inelastic hinge property
is displayed.
Section
Section name entered for the selected inelastic hinge property is displayed.
All the members
coinciding the above 4 items are selected on the Model View.
Import

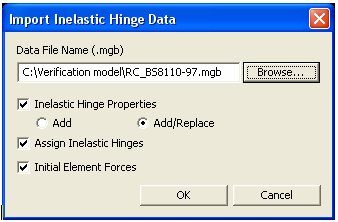

Inelastic Hinge Data
Click
to
import Inelastic Hinge Data from other files.
Data File Name (.mgb)
Click
to
select the inelastic model.
Inelastic Hinge Properties
Add or replace the inelastic hinge data with the selected data.
Assign Inelastic Hinges
Import “Assign Inelastic Hinges?data.
Initial Element Forces
Import the Initial Element Forces entered in the model.
Note
If the current model has no Initial Element Forces, the imported Initial Element Forces will be added. If the current model has Initial Element Forces, they will be replaced by the imported Initial Element Forces. The presence of Initial Element Forces can be checked from Load > Initial Forces > Small Displacement > Initial Element Force.
