Vehicle Classes

• Function

Enter vehicle load classes for moving load analysis.

• Call

From the Main Menu select Load > Moving Load Analysis Data > Vehicles Classes.

Select Moving Load Analysis > Vehicles Classes in the Menu tab of the Tree Menu.

• Entry


Vehicle Classes dialog box

To enter new or additional vehicle load classes

Click .

To modify previously entered vehicle load classes

Select the vehicle class to be modified in the dialog box and click .

To delete previously entered vehicle load classes

Select the vehicle class to be deleted in the dialog box and click .

Data entry method when is clicked.

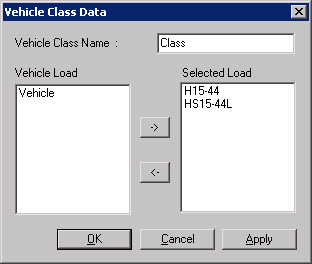

Vehicle Class Data dialog box

Vehicle Class Name

Enter the name of the vehicle load class.

Selected Load

Assign the vehicle loads to be included in the vehicle load class in the vehicle load list and click to select. If previously selected vehicle loads are to be removed from the selection, assign the vehicle loads and click to exclude.

: Assign the vehicle load class with the entered data and close the dialog box.

: Cancel the entries and close the dialog box.

: Assign the vehicle load class with the entered data and maintain the dialog box for additional vehicle classes.
