Function
Enter the method of performing moving load analysis and the location of output for element results.
Call
From the Main Menu select Analysis > Moving Load Analysis Control.
Entry

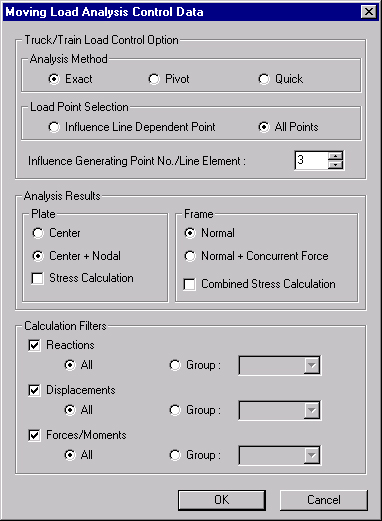

Truck/Train Load Control
OptionSet the method of performing moving load analysis using vehicular loads and the method of applying loads.
Influence
Dependent Point
This is a method which controls the vehicular loads in a moving load analysis
according to the influence values.
Maximum value(+): From the locations of the applied loads only the loads that result in positive influence values are used in the computation.
Minimum value(-): From the locations of the applied loads, only the loads that result in negative(-) influence values are used in the computation.
This method is used for general vehicular
loading and yields results larger than that from the All Points method
because the loads are controlled according to the influence values.
The method is used for train loading and
yields results smaller than that from the Influence Dependent Point method
because the loads are not controlled according to the influence values.
Influence
Generating Point No. / Line Element
Assign the number of reference points on a line element for moving loads
and drawing influence line in an influence line analysis. The accuracy
of results increases with the increase in the number, but the analysis
time may be excessive. If the length of beam element assigned with traffic
line lane or plate elements assigned with traffic surface lane is large,
then the “Influence Generating Point No. / Line Element” should be increased
for more accurate analysis.
Analysis PositionSet the position of the elements for which the moving load analysis results are calculated.
Plate
For plate elements, member forces per unit length are calculated as a result
of moving load analysis. The form of member force results is selected
from below.
Center: Calculate the member forces per unit length with respect to the centers of the elements and the output results are produced for the entire elements.
Center + Nodal: Calculate the member forces per unit length with respect to the element centers and the nodes constituting the elements and produce the results accordingly.
Stress Calculation: Assign whether or not to calculate the stresses of plate elements.
Frame
The moving load analysis results for Frame elements are produced in the
form of member forces pertaining to 5 Points of each member. The form
of member forces is selected from below.
Normal: Output member forces with respect to 5 Points of each beam element.
Normal + Concurrent Force: Calculate the member forces at 5 Points of the beam elements. Calculate the corresponding moments under the conditions where the maximum and minimum axial forces occur at each position. Similarly, calculate the corresponding axial forces under the conditions where the maximum and minimum moments occur at each position. The results are then produced. To produce the results in a table format, go to Result Tables > Beam > Force, right-click and select View by Max Value Item.
Combined Stress Calculation:
Calculation FiltersSelect the nodes or elements to be included in the moving load analysis.
Reactions
Select and enter the supports where the moving load analysis results related
to reactions are to be obtained.
All:
Select all supports.
Group: Use the Group identified in the model, and enter the supports
in the Group.
Displacements
Select and enter the nodes where the moving load analysis results related
to displacements are to be obtained.
All:
Select all supports.
Group: Use Group to enter nodes.
Forces/Moments
Select and enter the elements where the moving load analysis results related
to member forces are to be obtained.
All:
Select all elements.
Group: Use Group to enter elements.
