Function
Enter the load cases and the control parameters for iterations used in the P-Delta analysis of a structure. In order to consider the P-Delta effects in the processes of general static and dynamic analyses, we need to define the load condition to formulate the geometric stiffness matrix. We need to also specify the convergence requirements.
Call
From the Main Menu select Analysis > P-Delta Analysis Control.
Entry
|

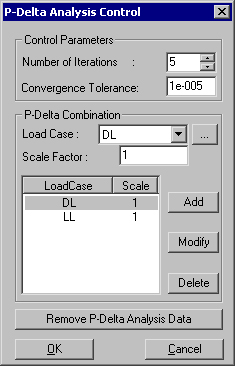

Control ParametersNumber of
Iterations Convergence
Tolerance
P-Delta CombinationSelect the loads that will be applied to determine the geometric stiffness matrix used in the P-Delta analysis. Enter different Load Cases with the corresponding Scale Factors. Select the dead loads (self-weight, dead load, etc.) generally acting on the structures. |
To enter a new or additional load case
Enter the Load Case and Scale Factor; then
click .
To modify the scale factor for a previously entered load case
Select the load case, modify the Scale Factor
and click .
To delete a previously entered load case
Select the load case to be deleted from the
load case list at the bottom of the dialog box and click .
P-Delta Analysis and Buckling Analysis may not be used simultaneously. The use of P-Delta Analysis is limited to truss, beam (including tapered beam) and wall elements.
To delete all the entered data, click .
