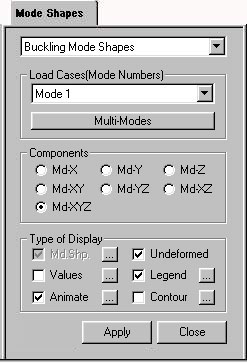

Buckling Mode Shapes

Components

Select a desired mode component among the following:

Md-X: Buckling mode component in GCS X-direction

Md-Y: Buckling mode component in GCS Y-direction

Md-Z: Buckling mode component in GCS Z-direction

Md-XY:

Md-YZ:

Md-XZ:

Md-XYZ:

Md.Shp.

Display the buckling mode shapes.

Mode Shape Scale Factor: Control the Scale Factor for buckling mode shapes.

Cubic Interpolation: Display the elements by cubically interpolating the mode shapes (including rotation angle) of each node.

Cubic Interpolation Factor: Factor to be applied for cubic interpolation. It affects the curvature of elements.

Undeformed

Display additionally the model shape in the buckling mode shapes.

The representation of the model shape can be controlled in Display Option.

Values

Display the component of a buckling mode in numerical values.

The font and color of the numbers can be controlled in Display Option.

Decimal Points: Assign decimal points for the displayed numbers

Exp.: Express as exponentials

Min & Max: Display the maximum and minimum values

Abs Max: Display the absolute maximum value

Max: Display only the maximum value

Min: Display only the minimum value

Limit Scale (%): Set the screen display limit for buckling mode shapes relative to the selected maximum or minimum value

Set Orientation: Display orientation of numerical values

Note
The default Decimal Points can be controlled in "Preferences".
Set Orientation = 0 horizontally displays the numerical values to the right of nodes or elements.
The orientation angle represents the counter-clockwise direction, which may be used to enhance the readability of the numbers.

Legend

Display various references related to analysis results to the right or left of the working window.

Legend Position: Position of the legend in the display window

Animate

Dynamically simulate the buckling modes.
Click then click Record to the right of the Animation control board at the bottom of the working window.

Animation Mode: Select the type of animation for analysis results.

Animate Contour: Option to change the color of the contour representing the transition according to the magnitudes of variation

Repeat Half/Full Cycle: Select the repetition cycle for the dynamic representation of the transition

Note
Select 'Half Cycle' for the transient shapes of a structure and 'Full Cycle' for dynamically simulating vibration modes or buckling modes.


AVI Options: Enter the options required to produce the animation window.

Bits per Pixel: Number of bits per pixel to create the default window for animation

: Assign the method of the compressing image data

Frames per Half Cycle (3~300): Number of frames to simulate a 'Half Cycle'

Frames per Second (5~60): Number of frames per second to present dynamic simulation


Construction Stage Option: Not Supported in Bucking Mode Analysis

Contour

Display the buckling modes in contour.

Ranges: Define the contour range.

: Assign the color distribution range of contour. Using the function, specific colors for specific ranges can be assigned.

Note
Contour Range Max/Min values can be larger than the max/min output values.  If the Contour Range values exceed the output values, they are entered at Rank 0 and Rank 11.

Number of Colors: Assign the number of colors to be included in the contour (select among 6, 12, 18, 24 colors)


Colors: Assign or control the colors of the contour.

Color Table: Assign the type of Colors.

: Control the colors by zones in the contour.

Reverse Contour: Check on to reverse the sequence of color variation in the contour.

Contour Line: Assign the boundary line color of the contour

Element Edge: Assign the color of element edges while displaying the contour


Contour Options: Specify options for contour representation.

Contour Fill

Gradient Fill: Display color gradient (shading) in the contour.

Draw Contour Lines: Display color boundaries in the contour.

Draw Contour Line Only
Display only the colored boundaries of the contour.

Mono line

Contour Annotation
Legend or annotation signifying the ranges of the contour is displayed.

Spacing
Display the spacing for the legend or annotation.

Coarse Contour (faster) (for large plate or solid model)
Represent a simplified contour for a large model using plate or solid elements in order to reduce the time required to represent a complete contour.

Extrude
Where plate elements or solid elements along a cutting plane are represented in contour, a three dimensional contour is created. The positive direction of the analysis results is oriented in the z-axis direction of the local element coordinate system.
The option is not concurrently applicable with the Deformed Shape option. Similarly, the option can not be concurrently applied to the cases where Hidden option is used to display plate element thicknesses or Both option is used to represent Top & Bottom member forces (stresses).
