Compact Element Numbers







Arrange unused element numbers and renumber all or certain elements in the order of priority of the GCS directions.







From the Main Menu select Model > Elements > Compact Numbers.



Select Geometry > Elements > Compact Numbers in the Menu tab of the Tree Menu.



Click Compact Element Numbers in the Icon Menu.



Shortcut key: [Alt]+0

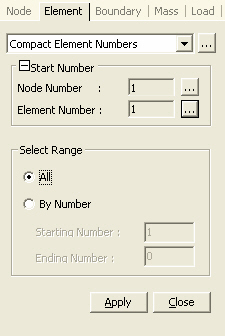

Click to the right of Compact Element Numbers : Display the Element Table

Start Node Number



Not applicable for this command.



Start Element Number



Not applicable for this command.



Select Range



Assign the range of element numbers to renumber in the order of priority.



All: All elements are targeted



By Number: A particular range of element numbers is targeted



Starting Number: Starting number of the range



Ending Number: Last number of the range
