Capacity Irregularity Check (Weak Story) Table
Generate the story strength and the results of evaluation of weak story to check capacity irregularity in a spreadsheet format table.
Story strength is the total strength of seismic-resisting elements sharing the story shear for the direction under consideration. The story strength and the results of evaluation of weak story exhibiting discontinued strength are tabulated.
When "Story Shear Force Ratio>Consider Story Module" is checked in the "Model/Building/Control Data", accurate shear forces can be obtained for the story having the overlapping Module.

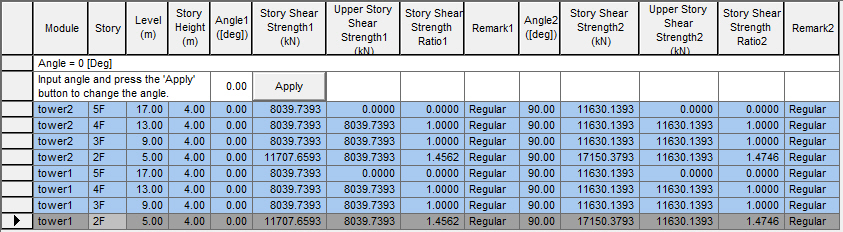

When Modules are defined in Structure > Building > Story > Define Module button, the Module data is displayed in the first column of the table.
When the ratios exceed the allowable limit, they appear in red and 'Irregular' is printed in the Remark.
Table Tool in midas Gen offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions.
From the Main Menu select Results > Tables > Result Tables > Story > Capacity Irregularity Check (Weak Story).

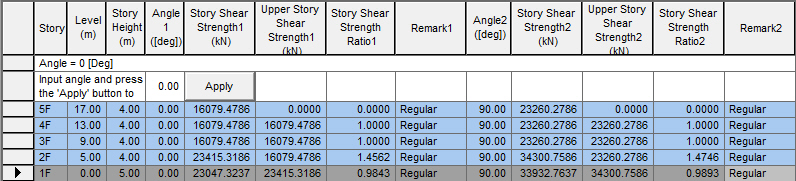

When Modules are not defined
