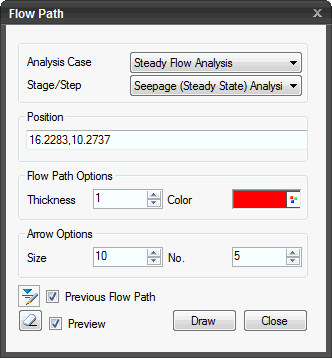

Analysis Case
Select
the Analysis Case for which the flow lines will be drawn. Among the results
of the selected Analysis Case, the flow lines perpendicular to equipotential
lines of the total water head will be drawn.
Stage/Step
Select
the (Construction) Stage/(Time) Step at which the result data needs to
be checked.
Position
Directly enter the coordinate or alternatively,
choose a point by locating the mouse on the model domain. Upon entering
the position, the flow line passing through the coordinate will be drawn.
Flow Path Options
Thickness: Thickness of flow lines
Color: Select the color of the flow
lines.
Arrow Options
Size: Specify the size of the arrow
head.
No.: Specify the number of arrows to
be drawn per flow line.
Previous Flow Path
Check
on to maintain the previously drawn flow lines. If
the option is checked off, new flow lines will be drawn at the selected
positions.

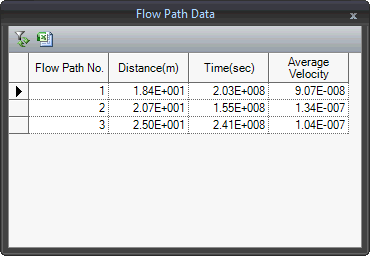

Check
the Flow
Path Data   drawn. Seepage
distance, time and average speed can be checked in a table, which can
be sorted or linked to Excel.
Preview
Check
on to preview the flow line to be drawn by moving the mouse position.
 The dialog box will
be initialized.
 Draw the flow line
passing through the entered coordinate.
Click the ESC key to close the dialog box.
|
