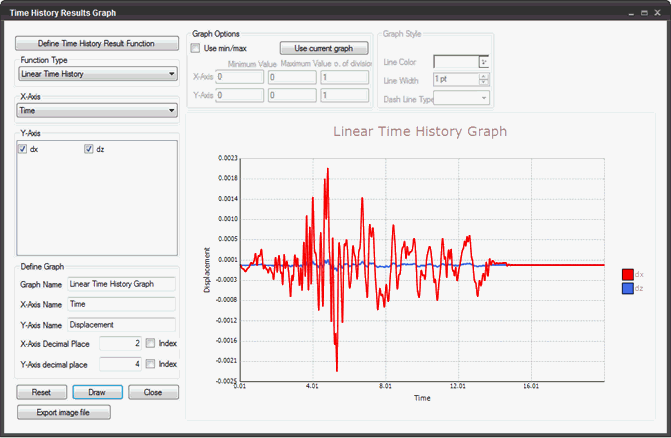

Time History Result
Function
Define
or modify the settings for generating the results in graphs.
Function Type
Select
a function type for the analysis type. (Linear time history, Equivalent
linear time history, Response spectrum (Equivalent linear), Fourier amplification
(Equivalent linear))
Y axis
Define
the output function to be generated on the vertical axis. Result
graphs for all the checked functions will be generated.
Graph Option
Consider
Min / Max Values
Specify
the range of Min / Max values to be applied to the graph.
Use
Current Graph Values
Use
the Min / Max range currently shown on the graph.
Min
Value
Minimum
value of the range of the graph to be generated
Max Value
Maximum
value of the range of the graph to be generated
Number of Divisions
Number
of divisions between the minimum and maximum values
Graph
Style
Line
Color
Line
Width
Line
Dash Type
Define Graph
Specify
the title of the graph and settings.
Graph
Name
X
axis Name
Y
axis Name
X
axis Decimal Point Y axis Decimal Point
If
Exp is checked on, the graph will be generated in an exponent type.
 The dialog box will
be initialized.
 The graph of the
function clicked on Y axis will be drawn.
 Click the ESC key
to close the dialog box.
 Image files of the graphs are generated.
If 2 or more functions are selected, an image file
for each function is generated, and a composite graph of all the functions
is generated.
|
