[Body] Tab > [Modify] > [Boolean]

< Mini Toolbar >

Select Target Body

: Select target body for boolean operation.

 - Selectable Objects : Face body(2D), solid body(3D)

Only one Target Body can be selected.

Delete Tool Bodies

: Delete tool body for boolean operation.

 - Deletable Objects : Face body(2D), solid body(3D)

Generally relative complement calculation is used for differentiation of target object and tool object.

Boolean

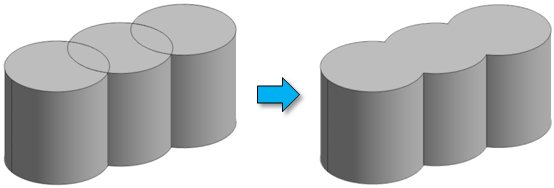

(Add) : Merge body using the Add function.

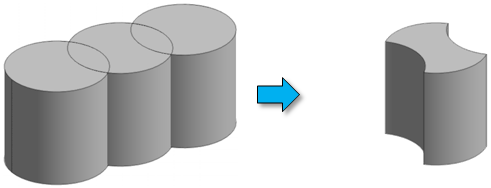

 (Cut) : Remove the overlap between the created body and existing body using a Cut function.

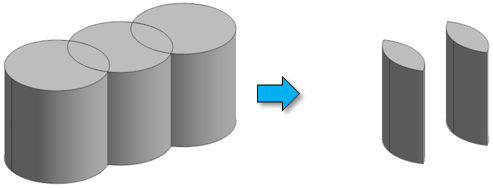

(Intersect) : Remove everything but the overlap between the created body and existing body using an Intersect function.
