Pile Calculation

It is a tool that calculates a required number of pile according to the reaction for global z-axis.



¢Æ Call

[Member] > [Basement] > [Pile Array] > [Specific] > [Pile Calculation]



¢Æ Detail Description

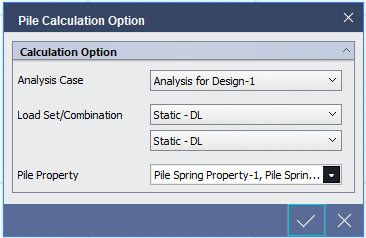

[Pile Calculation dialog box]



   Analysis Case : Select analysis case.

   Load set / Combination : Select  load set or load combination to get the reaction.

   Pile Property : Select a pile properties. Pile properties can be created by using ¡°Pile Properties¡±.

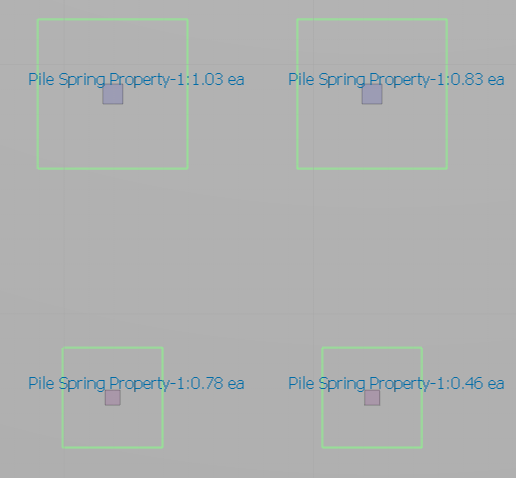

[Example] Pile Calculation Information

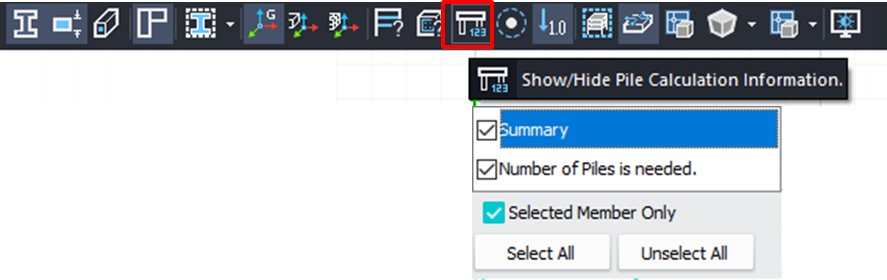

     This feature should be used after finishing an analysis and turned on "Show/Hide Pile Calculation Information" icon in tool bar as follows.
