New

[Load] Tab > [Gravity] > [Crane Load] > [Define Crane]

Modify, Delete

Work Tree [Analysis] Tab > [Moving Load] > [Crane] > Right-Click > [Modify], [Delete]

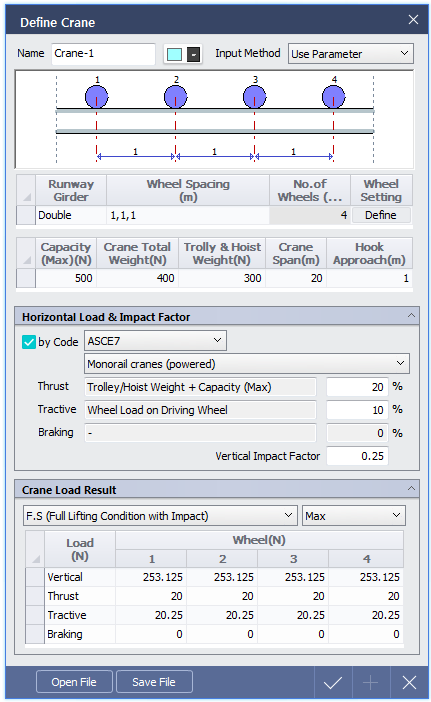

< Define Crane Girder Dialog when selecting Use Parameter >

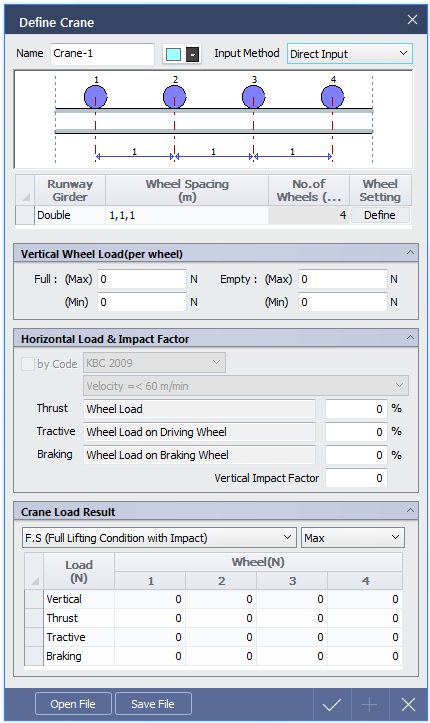

< Define Crane Girder Dialog when Direct Input is selected >

Name : Define the name of crane.

Color : Select the color of crane label.

Input Method : Select the input method of crane.

Use Parameter : Method to calculate Wheel Load automatically by inputting crane specifications.

Direct Input: Method to define Wheel Load manually.

Crane Specifications

Runway Girder : Select type of crane runway girder.

Double

Single

Wheel Spacing : Enter the wheel spacing of crane

No. of Wheels : Number of wheels (Calculated automatically using Wheel Spacing information).

Wheel Setting : Define driving and braking wheel of crane.

Driving Wheel

Braking Wheel

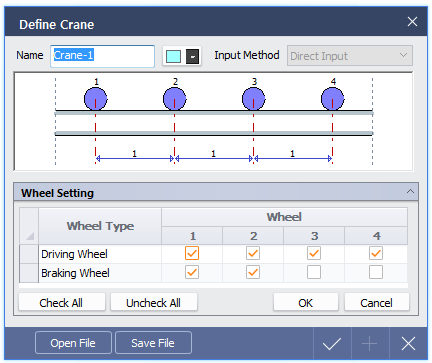

<Wheel Setting>

Capacity(Max) : Crane capacity

Crane Total Weight

Trolley&Hoist Weight

Crane Span

Hook Approach : Limitation length of Hook Approach

Horizontal Load & Impact Factor

by Code : Select whether to use horizontal load and impact factor specified in the codes.

 Crane Impact Factor Design Standards

   KBC2009

   ASCE 7

   AISE

   MBMA

   GB50009-2012

Thrust : Horizontal load acting perpendicular to the direction of crane movement.

Tractive : Horizontal load acting along the direction of crane movement.

Braking : Horizontal load due to the braking force along the direction of crane movement.

Vertical Impact Factor

Crane Load Result

Check wheel load value calculated using defined crane specification and impact factor.

F.S (Full Lifting Condition with Impact) : Wheel load of crane considering its full capacity specified in the specifications with impact factor.

F.N (Full Lifting Condition without Impact) :  Wheel load of crane considering its full capacity specified in the specifications without impact factor.

E.N (Empty Condition without Impact) : Wheel load of empty crane without impact factor.

Max : Maximum load

Min : Minimum load

 Defined crane specification can be saved in separate file format with Save File option. Open File can import saved crane specification.
