Line

Draw line.

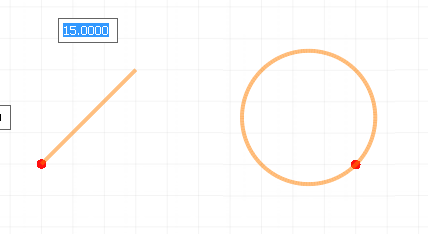

Circle > Center Point

Draw circle based on center point and a point of the circumference.

Circle > Three Points

Draw circle based on three points of the circumference.

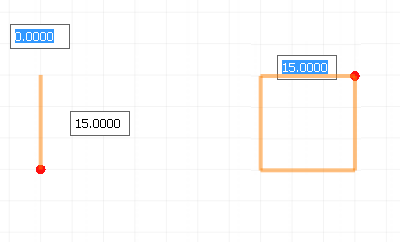

Rectangle > Two Point

Draw rectangle by specifying two points located diagonally opposite to each other.

Rectangle > Three Points

Draw rectangle by specifying three points of the rectangle.

Rectangle > Center Point

Draw rectangle by specifying center point and one corner of the rectangle.

Rectangle > Center Point 2

Draw rectangle by specifying center point, midpoint of one side and adjacent corner point.

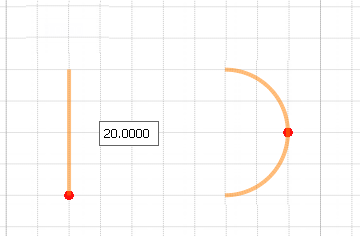

Arc > Tangent

Draw arc which is tangent to horizontal line.

Opposite Direction : Draw arc in opposite direction.

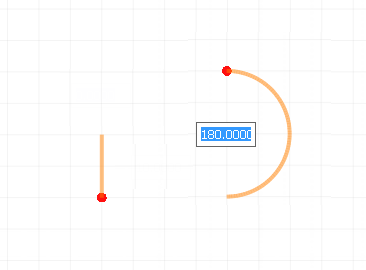

Arc > Center Point

Draw arc using center, begin and end point.

Arc > Three Points

Draw arc using begin, end and a random point in between those two points.

Profile

Draw a line/curve with multiple control points.

Line : Draw line.

Arc : Draw arc.

Polygon

Draw polygon.

Circumscribed : Create circumscribed polygon.

Inscribed : Create inscribed polygon.

RefLine

Draw reference line.

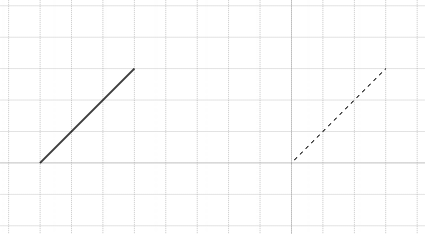

Check RefLine

Convert selected line into reference line.
