Mat Footing

Create mat footing members(2D) supported by soil or pile. It is automatically assigned to the “Basement” member set, and designed by FEA Method. It is classified as an Isolated Footing member in drawings and reports, and the default cover is 80mm. When placing piles, the user can change the cover thickness if required.

▒ Call

New [Member] > [Basement] > [Mat Footing]   Delete Work Tree [Model] Tab > [Member] > [Member Set] > [Mat Footing] > [List] > Right-click > [Delete]

▒ Detail Description

3D Modeling Mode

[ Member Settings &  Insert Coordinates ]    Member Set : Select Member Set.    Story Set : Select Story Set.         Thickness : Select Thickness Property.    Distance : Distance between the Column Center and the foundation edge

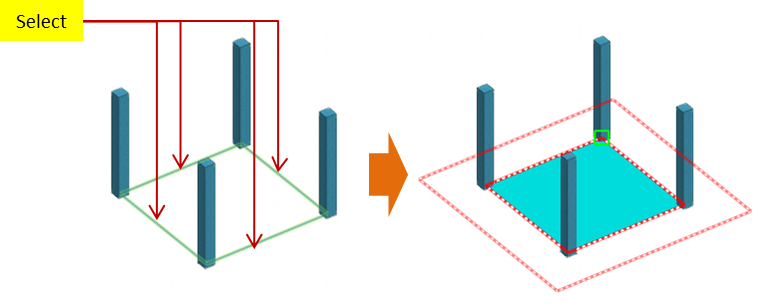

By Select : Create slab by selecting closed section formed from Grid Line, 1D member, Edge of 2D members etc.       By Draw : Select three or more points to create slab.

Story Mode

Identical to 3D Modeling Mode
