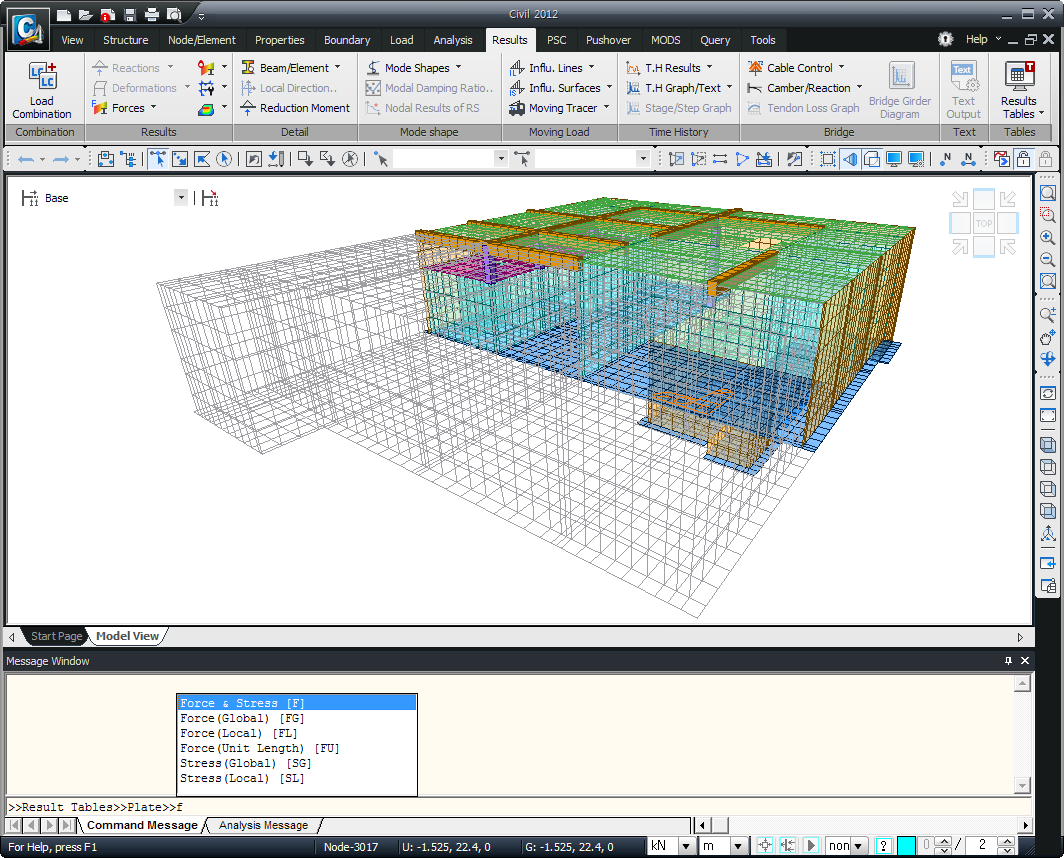

Command Line
▒ 기능
|
기능을 호출할 경우에 마우스 클릭으로 여러 단계를 거쳐야 하는 번거로움을
최소화할 수 있도록 Auto CAD 기능과 같은 Command Line기능을 추가하여
모델링 및 결과분석의 효율성을 극대화하였습니다.
▒ 사용
|
Command Line 사용 방법 |
1. Command Line에 마우스를 클릭하거 모델뷰상의 임의의 위치에 클릭한 후 Space Bar를 누르면 Command key를 입력가능한 상태가 됩니다. 2. shortcutkey.cmd 에 지정된 Key 를 입력합니다. Key에는 메뉴/기능 호출을 위한 Command Key와 Command Group을 호출하는 Group Key, 두 종류가 있습니다. Civil의 많은 메뉴에 대해 일일이 Key를
지정하게 되면 알파벳 하나 또는 두자리의 Key만으로는 중복을 피하기 어려우며, 중복을 피하기 위해
Key의 자리수를 늘리면 효율이 떨어지는 문제가 발생합니다. 이를 위해 Windows의 폴더/트리구조와
같은 트리 구조를 도입하였습니다.

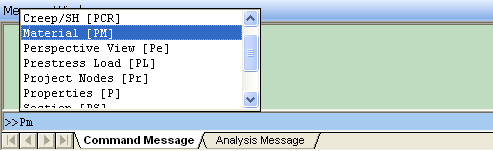

1) Command Key의 사용 : 'PM' command key이며 command line에 'PM'을 입력하면 Model >Properties > Material 메뉴를 호출할 수 있습니다. 2) Group Key의 사용 : P는 Properties에 대한 Group Key이며 'P' Group 내에 Material에 해당하는 Command Key 'M'이 속해있으므로, 'P'를 입력하여 Properties그룹을 선택하고 다시 M을 입력하면 Material 메뉴를 호출할 수 있습니다.
3. 입력과 동시에 해당 Key에 할당된 메뉴(또는 그룹) 리스트가 출력되고 키보드의 화살표키로 이동한후 Space Bar또는 Enter를 누르거나 마우스로 클릭하여 선택합니다. 4. 선택과 동시에 해당 기능/메뉴가 실행되면서 Command Line은 초기상태로 되돌아 갑니다. 그룹인 경우에는 해당 하위 메뉴 리스트를 출력합니다. 5. 입력한 Key를 지우려면 Backspace키를 누릅니다. |
Command Key 설정 방법 |
모든 Command Key에 대한 정보는 C: > Program Files > MIDAS > MIDAS Civil > User폴더 내의 shortcutkey.cmd 파일에 저장되어 있으며 이 파일의 편집을 통해서 사용자가 원하는 대로 Key를 설정할 수 있습니다.

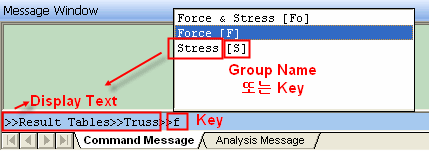

shortcutkey.cmd파일의 한 Line에 하나의 Command Key 또는 Group Key의 정보가 들어있으며, 형식은 다음과 같습니다. Key, Display Text/Group Path, Type, Menu Path or Group Name/Path
Key : 기능/메뉴 호출을 위한 단축키 Display Text: 해당 key입력시 Command Line에 출력할 Text Group Path: 해당 Command Key가 Group내에 속해있는 Key인경우 Group의 경로를 입력합니다. Group경로 입력시에는 Group Name을 사용해야 합니다. Type: Key의 종류 C: Command Key. 메뉴/기능의 실행 G: Group Key. Commad Group의 선택 L: 하위 그룹의 선택. 그룹내에 포함되어있는 다른 그룹을 바로 선택하기 위한 key입니다. Menu Path: Key Type이 'C'인 경우. 실행할 메뉴의 경로를 입력합니다. 경로는 Main Menu기준으로 입력하며, 메뉴 이름에 포함된 '...'은 무시하며, 대소문자는 구별하지 않아도 무방합니다. Group Name: Key Type이 'G'인 경우. 그룹의 이름을 입력합니다. Group Path: Key Type이 'L'인 경우. 선택할 하위 그룹이 속해있는 상위 그룹의 경로를 입력합니다. Group경로 입력시에는 Group Name을 사용해야 합니다.
1. RT, Result Tables, G, RT 2. T, RT > Truss, G, RTT 3. RTT, Truss, L, RT > Truss 3. Fo, RT > RTT > Force & Stress, C, Results > Result Tables > Truss > Force & Stress 4. RTTF, Force, C, Results > Result Tables > Truss > Force

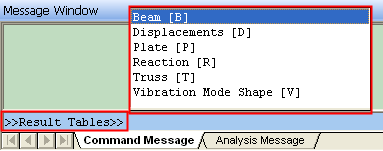

1. 'RT'라는 Command Group을 설정합니다. Command Line에 'RT'입력시 'Result Table'이라고 표시되며 이 그룹에 속한 하위 그룹/Command List가 나옵니다.

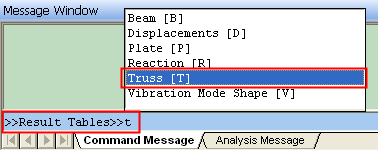

2. RT그룹의 하위 그룹인 RTT(그룹 이름)라는 그룹을 정의하고 이 그룹의 Group Key는 'T'로 지정합니다. 이 그룹의 경로 'RT > Truss'에서 'RT'는 RT그룹의 Key가 아닌 그룹 이름입니다. RT를 입력하여 Result Table(RT)을 선택하고 다시 T를 입력하여 하위 그룹 Truss(T)를 선택하면, Truss(T) 그룹에 속해있는 Command Key리스트가 표시됩니다.
3. Result Table(TR) 그룹 내의 Truss(T) 그룹을 바로 선택할 수 있는 L Type의 Key를 RTT로 정의합니다. RTT를 입력하면 RT > Truss 경로를 가지는 그룹이 바로 선택됩니다.

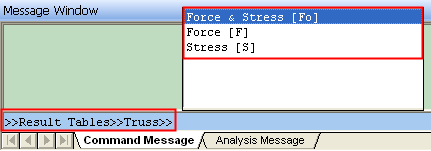

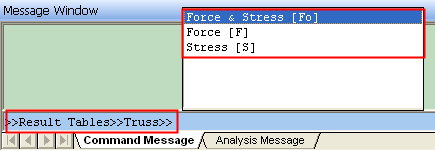

4. Result Table(RT)그룹의 하위 그룹인 Truss(T)그룹 내에 Force & Stress 메뉴에 대한 Command Key 'Fo'를 지정합니다. Results > Result Tables > Truss > Force & Stress메뉴의 실행을 위한 Command Key 'Fo'를 Result Table(RT) > Truss(T) 그룹에 정의합니다. 이 Key의 실행을 위해서는 먼저 Result Table(RT) > Truss(T)그룹으로 이동해야 합니다.
5. Results > Result Tables > Truss > Force & Stress 실행을 위해 Command Key인 'RTTFo'를 정의 합니다. 이 Key는 어느 그룹에도 속해있지 않은 Command Key로써 Command Line의 가장 상위에서 실행 가능합니다.
1. Group Key가 중복되는 경우 가장 먼저(shortcutkey.cmd 파일에서 위쪽) 정의된 Group이 실행됩니다. 2. Command Key가 중복되는 경우에는 가장 나중에(shortcutkey.cmd 파일에서 아래쪽)에 정의된 Command가 실행됩니다. 3. 경로 지정시 그룹 이름을 정확하게 입력해야 합니다. 4. 초기상태에서 Space Bar를 누르면 가장 상위의 Group에 대한 key와 그룹에 속해있지 않은 Command Key가 모두 리스트에 표시됩니다. 5. 해석 중에는 Command Line을 사용할 수 없습니다.
Str, Structure Type, C, Model>Structure Type
C, Create, G, C N, C > Create Nodes, C, Model > Nodes > Create Nodes CN, Create Nodes, C, Model > Nodes > Create Nodes E, C > Create Elements, C, Model > Elements > Create Elements CE, Create Elements, C, Model > Elements > Create Elements
D, Delete, G, D N, D > Delete Nodes, C, Model >Nodes >Delete DN, Delete Nodes, C, Model >Nodes >Delete E, D > Delete Elements, C, Model > Elements > Delete DE, Delete Elements, C, Model > Elements > Delete
T, Translate, G, T N, T > Translate Nodes, C, Model > Nodes > Translate TN, Translate Nodes, C, Model > Nodes > Translate E, T > Translate Elements, C, Model > Elements > Translate TE, Translate Elements, C, Model > Elements > Translate
Ro, Rotate, G, Ro N, Ro > Rotate Nodes, C, Model > Nodes > Rotate RoN, Rotate Nodes, C, Model > Nodes > Rotate E, Ro > Rotate Elements, C, Model > Elements > Rotate RoE, Rotate Elements, C, Model > Elements > Rotate
Mi, Mirror, G, Mi N, Mi > Mirror Nodes, C, Model > Nodes > Mirror MiN, Mirror Nodes, C, Model > Nodes > Mirror E, Mi > Mirror Elements, C, Model > Elements > Mirror MiE, Mirror Elements, C, Model > Elements > Mirror
Di, Divide, G, Di N, Di > Divide Nodes, C, Model > Nodes > Divide DiN, Divide Nodes, C, Model > Nodes > Divide E, Di > Divide Elements, C, Model > Elements > Divide DiE, Divide Elements, C, Model > Elements > Divide
Me, Merge, G, Me N, Me > Merge Node, C, Model > Nodes > Merge MeN, Merge Node, C, Model > Nodes > Merge E, Me > Merge Elements, C, Model > Elements > Merge MeE, Merge Elements, C, Model > Elements > Merge
Ren, Renumbering, G, Ren N, Ren > Renumbering, C, Model > Nodes > Renumbering RenN, Renumbering, C, Model > Nodes > Renumbering E, Ren > Renumbering, C, Model > Elements > Renumbering RenE, Renumbering, C, Model > Elements > Renumbering Pr, Project Nodes, C, Model > Nodes > Project I, Intersect Elements, C, Model > Elements > Intersect E, Extrude Elements, C, Model > Elements > Extrude Ch, Change Element Parameters, C, Model > Elements > Change Element Parameters
P, Properties, G, P M, P > Material, C, Model > Properties > Material PM, Material, C, Model > Properties > Material S, P > Section, C, Model > Properties > Section PS, Section, C, Model > Properties > Section CR, P > Creep/SH, C, Model > Properties > Time Dependent MAterial(Creep/Shrinkage) PCR, Creep/SH, C, Model > Properties > Time Dependent MAterial(Creep/Shrinkage) SF, P > Section Stiffness Scale Factor, C, Model > Properties > Section Stiffness Scale Factor PSF, Section Stiffness Scale Factor, C, Model > Properties > Section Stiffness Scale Factor T, P > Thickness, C, Model > Properties > Thickness PT, Thickness, C, Model > Properties > Thickness CS, P > Comp.Strength, C, Model > Properties > Time Dependent MAterial(Comp. Strength) PCS, Comp.Strength, C, Model > Properties > Time Dependent MAterial(Comp. Strength)
B, Boundaries, G, B S, B > Supports, C, Model > Boundaries > Supports BS, Supports, C, Model > Boundaries > Supports R, B > Beam End Release, C, Model > Boundaries > Beam End Release BR, Beam End Release, C, Model > Boundaries > Beam End Release O, B > Beam End Offsets, C, Model > Boundaries > Beam End Offsets BO, Beam End Offsets, C, Model > Boundaries > Beam End Offsets RL, B > Rigid Link, C, Model > Boundaries > Rigid Link BRL, Rigid Link, C, Model > Boundaries > Rigid Link EL, B > Elastic Link, C, Model > Boundaries > Elastic Link BEL, Elastic Link, C, Model > Boundaries > Elastic Link EW, B > Effective Width, C, Model > Boundaries > Effective Width Scale Factor BEW, Effective Width, C, Model > Boundaries > Effective Width Scale Factor GL, B > General Link, C, Model > Boundaries > General Link BGL, General Link, C, Model > Boundaries > General Link GLP, B > General Link Properties, C, Model > Boundaries > General Link properties BGLP, General Link Properties, C, Model > Boundaries > General Link Properties
M, Masses, G, M N, M > Nodal Masses, C, Model > Masses > Nodal Masses MN, Nodal Masses, C, Model > Masses > Nodal Masses L, M > Loads to Masses, C, Model > Masses > Loads to Masses ML, Loads to Masses, C, Model > Masses > Loads to Masses
Gr, Group, G, Gr S, Gr > Define Structure Group, C, Model > Group > Define Structure Group GrS, Define Structure Group, C, Model > Group > Define Structure Group B, Gr > Define Boundary Group, C, Model > Group > Define Boundary Group GrB, Define Boundary Group, C, Model > Group > Define Boundary Group L, Gr > Define Load Group, C, Model > Group > Define Load Group GrL, Define Load Group, C, Model > Group > Define Load Group T, Gr > Tendon Load Group, C, Model > Group > Define Tendon Group GrT, Define Tendon Groupb, C, Model > Group > Define Tendon Group
Rd, Redraw, C, View > Redraw
In, Initial View, C, View > Initial View
Dy, Dynamic View, G, Dy Z, Dy > Zoom, C, View > Dynamic View > Zoom DyZ, Zoom, C, View > Dynamic View > Zoom P, Dy > Pan, C, View > Dynamic View > Pan DyP, Pan, C, View > Dynamic View > Pan R, Dy > Rotate, C, View > Dynamic View > Rotate DyR, Rotate, C, View > Dynamic View > Rotate
Z, Zoom, G, Z F, Z > Fit, C, View > Zoom > Fit ZF, Fit, C, View > Zoom > Fit W, Z > Window, C, View > Zoom > Window ZW, Window, C, View > Zoom > Window I, Z > In, C, View > Zoom > In ZI, In, C, View > Zoom > In O, Z > Out, C, View > Zoom > Out ZO, Out, C, View > Zoom > Out A, Z > Auto Fitting, C, View > Zoom > Auto Fitting ZA, Auto Fitting, C, View > Zoom > Auto Fitting
Vi, View Point, G, Vi I, Vi > Iso, C, View > View Point > Iso ViI, Iso, C, View > View Point > Iso T, Vi > Top(+Z), C, View > View Point > Top (+Z) ViT, Top(+Z), C, View > View Point > Top (+Z) L, Vi > Left(-X), C, View > View Point > Left (-X) ViL, Left(-X), C, View > View Point > Left (-X) R, Vi > Right(+X), C, View > View Point > Right (+X) ViR, Right(+X), C, View > View Point > Right (+X) F, Vi > Front(-Y), C, View > View Point > Front (-Y) ViF, Front(-Y), C, View > View Point > Front (-Y) A, Vi > Angle, C, View > View Point > Angle ViA, Angle, C, View > View Point > Angle Sh, Shrink Elements, C, View > Shrink Elements Pe, Perspective View, C, View > Perspective View H, Remove Hidden Lines, C, View > Remove Hidden Lines
S, Select, G, S Id, S > Identity, C, View > Select > Identity SId, Identity, C, View > Select > Identity S, S > Single, C, View > Select > Single SS, Single, C, View > Select > Single W, S > Window, C, View > Select > Window SW, Window, C, View > Select > Window Po, S > Polygon, C, View > Select > Polygon SPo, Polygon, C, View > Select > Polygon In, S > Intersect Line, C, View > Select > Intersect Line SIn, Intersect Line, C, View > Select > Intersect Line P, S > Plane, C, View > Select > Plane SP, Plane, C, View > Select > Plane V, S > Volume, C, View > Select > Volume SV, Volume, C, View > Select > Volume All, S > Select All, C, View > Select > Select All SAll, Select All, C, View > Select > Select All Pr, S > Select Previous, C, View > Select Previous SPr, Select Previous, C, View > Select Previous
U, Unselect, G, U Id, U > Identity, C, View > Unselect > Identity Uid, Identity, C, View > Unselect > Identity W, U > Window, C, View > Unselect > Window UW, Window, C, View > Unselect > Window Po, U > Polygon, C, View > Unselect > Polygon Upo, Polygon, C, View > Unselect > Polygon I, U > Intersect Line, C, View > Unselect > Intersect Line UI, Intersect Line, C, View > Unselect > Intersect Line P, U > Plane, C, View > Unselect > Plane UP, Plane, C, View > Unselect > Plane V, U > Volume, C, View > Unselect > Volume UV, Volume, C, View > Unselect > Volume All, U > Unselect All, C, View > Unselect > Unselect All UAll, Unselect All, C, View > Unselect > Unselect All
A, Activities, G, A A, A > Active, C, View > Activities > Active AA, Active, C, View > Activities > Active I, A > Inactive, C, View > Activities > Inactive AI, Inactive, C, View > Activities > Inactive In, A > Inverse Active, C, View > Activities > Inverse Active AIn, Inverse Active, C, View > Activities > Inverse Active All, A > Active All, C, View > Activities > Active All AAll, Active All, C, View > Activities > Active All Id, A > Active Identity, C, View > Activities > Active Identity AId, Active Identity, C, View > Activities > Active Identity P, A > Active Previous, C, View > Activities > Active Previous AP, Active Previous, C, View > Activities > Active Previous
G, Grid, G, G V, G > View, G, GV GV, View, L, G > View P, G > GV > Point Grid, C, View > Grids > Point Grid GP, Point Grid, C, View > Grids > Point Grid L, G > GV > Line Grid, C, View > Grids > Line Grid GL, Line Grid, C, View > Grids > Line Grid
D, G > Define, G, GD GD, Define Grid, L, G > Define P, G > GD > Define Point Grid, C, Model > Grids > Define Point Grid GCP, Define Point Grid, C, Model > Grids > Define Point Grid L, G > GD > Define Line Grid, C, Model > Grids > Define Line Grid GCL, Define Line Grid, C, Model > Grids > Define Line Grid
Sn, Snap, G, Sn P, Sn > Point, C, View > Snap > Point SnP, Point, C, View > Snap > Point L, Sn > Line, C, View > Snap > Line SnL, Line, C, View > Snap > Line N, Sn > Node, C, View > Snap > Node SnN, Node, C, View > Snap > Node E, Sn > Element, C, View > Snap > Element SnE, Element, C, View > Snap > Element All, Sn > All, C, View > Snap > All SnAll, All, C, View > Snap > All Free, Sn > Free, C, View > Snap > Free SnFree, Free, C, View > Snap > Free
Dis, Display, G, Dis D, Dis > Display, C, View > Display Dp, Display, C, View > Display O, Dis > Display Option, C, View > Display Option DO, Display Option, C, View > Display Option
SL, Static Load, G, SL NL, SL > Nodal Loads,C,Load>Nodal Loads SLNL, Nodal Loads,C,Load>Nodal Loads EB, SL > Element Beam Loads,C,Load>Element Beam Loads SLEB, Element Beam Loads,C,Load>element beam loads LB, SL > Line Beam Loads, C, Load>Line Beam Loads SLLB, Line Beam Loads,C,Load>Line beam loads PL, SL > Pressure Loads,C,Load>Pressure loads SLPL, Pressure Loads,C,Load>pressure Loads
TL,Temperaure Loads, G, TL ST, TL>System Temperature,C,Load>Temperature Loads>system temperature TLST, System Temperature,C,Load>temperature loads>system temperature NT, TL>Nodal Temperature,C,Load>temperature loads>nodal temperatures TLNT, Nodal Temperature,C,Load>temperature loads>nodal temperatures ET, TL>Element Temperature,C,Load>temperature loads>element temperatures TLET, Element Temperature,C,Load>temperature loads>element temperatures TG, TL>Temperature Gradient,C,Load>temperature loads>temperature gradient TLTG, Temperature Gradient,C,Load>temperature loads>temperature gradient BT, TL>Beam Section Temperatures,C,Load>temperature loads>beam section temperatures TLBT, Beam Section Temperatures,C,Load>temperature loads>beam section temperatures
PL, Prestress Load, G, PL BL, PL > Prestress Beam Load, C, Load > Prestress Loads > Prestress Beam Loads PT, PL > Pretension, C, Load > prestress Loads > pretension loads EPT, PL > External Pretension, C, Load > prestress Loads > External Type Loadcase for pretension TPT, PL > Tendon property, C, Load > prestress Loads > Tendon Property TPR, PL > Tendon Profile, C, Load > prestress Loads > Tendon Profile TPL, PL > Tendon Prestress Loads, C, Load > prestress Loads > Tendon Prestress loads
MVL, Moving Load, G, MV Co, MV > Code, C, Load > Moving Load Analysis Data > Moving Load Code MVC, MVL Code, C, Load > Moving Load Analysis Data > Moving Load Code TLL, MV > Line Lanes, C, Load > Moving Load Analysis Data > Traffic Line Lanes MVTLL, Traffic Line Lanes, C, Load > Moving Load Analysis Data > Traffic Line Lanes TSL, MV > Surface Lanes, C, Load > Moving Load Analysis Data > Traffic Surface Lanes MVTSL, Traffic Surface Lanes, C, Load > Moving Load Analysis Data > Traffic Surface Lanes Ve, MV > Vehicles, C, Load > Moving Load Analysis Data > Vehicles MVVe, Vehicles, C, Load > Moving Load Analysis Data > Vehicles VeC, MV > Vehicle Classes, C, Load > Moving Load Analysis Data > Vehicle Classes MVVeC, Vehicle Classes, C, Load > Moving Load Analysis Data > Vehicle Classes CA, MV > MVL Case, C, Load > Moving Load Analysis Data > Moving Load Cases MVCA, MVL Case, C, Load > Moving Load Analysis Data > Moving Load Cases CR, MV > Concurrent Reaction, C, Load > Moving Load Analysis Data > Concurrent Reaction Group MVCR, Concurrent Reaction, C, Load > Moving Load Analysis Data > Concurrent Reaction Group LS, MV > Lane Support, C, Load > Moving Load Analysis Data > Lane Support-Negative Moment at interior piers MVLS, Lane Support, C, Load > Moving Load Analysis Data > Lane Support-Negative Moment at interior piers
HH, Meat of Hydration, G, HH AT, HH > Ambient Temp, C, Load > Heat of Hydration Analysis Data > Ambient Temperature Functions CC, HH > Convection Coeff, C, Load > Heat of Hydration Analysis Data > Convection Coefficient Functions EC, HH > Element Convection, C, Load > Heat of Hydration Analysis Data > Element Convection Boundary PT, HH > Prescribed Temp, C, Load > Heat of Hydration Analysis Data > Prescribed Temperature HS, HH > Heat Source, C, Load > Heat of Hydration Analysis Data > Heat Source Functions AHS, HH > Assign HEat source, C, Load > Heat of Hydration Analysis Data > Assign Heat source PC, HH > Pipe Cooling, C, Load > Heat of Hydration Analysis Data > Pipe Cooling CSH, HH > CS for Hydration, C, Load > Heat of Hydration Analysis Data > Define Construction Stage for Hydration
Ana, Analysis, G, Ana M, Ana > Main Control, C, Analysis > Main Control Data AM, Main Control, C, Analysis > Main Control Data PD, Ana > P-Delta, C, Analysis > P-Delta Analysis control APD, P-Delta, C, Analysis > P-Delta Analysis control Bu, Ana > Buckling, C, Analysis > Buckling Analysis Control ABu, Buckling, C, Analysis > Buckling Analysis Control EG, Ana > Eigenvalue, C, Analysis > Eigenvalue Analysis Control AEG, Eigenvalue, C, Analysis > Eigenvalue Analysis Control RS, Ana > Response Spectrum, C, Analysis > Response Spectrum ANalysis Control ARS, Response Spectrum, C, Analysis > Response Spectrum ANalysis Control HH, Ana > Heat of Hydration, C, Analysis > Heat of Hydration Analysis Control AHH, Heat of Hydration, C, Analysis > Heat of Hydration Analysis Control MV, Ana > Moving Load, C, Analysis > Moving Load Analysis Control AMV, Moving Load, C, Analysis > Moving Load Analysis Control NL, Ana > Nonlinear, C, Analysis > Nonlinear Analysis Control ANL, Nonlinear, C, Analysis > Nonlinear Analysis Control CS, Ana > Construction Stage, C, Analysis > Construction Stage Analysis Control ACS, Construction Stage, C, Analysis > Construction Stage Analysis Control SU, Ana > Suspension Bridge, C, Analysis > Suspension Bridge Analysis Control ASU, Suspension Bridge, C, Analysis > Suspension Bridge Analysis Control BC, Ana > Boundary Change, C, Analysis > Boundary Change Assignment to Load Cases/Analyses ABC, Boundary Change, C, Analysis > Boundary Change Assignment to Load Cases/Analyses
Co, Combinations, C, Results > Combinations
Rea, Reactions, G, Rea F, Rea > Reaction Forces/Moments, C, Results > Reactions > Reaction Forces/Moments ReaF, Reaction Forces/Moments, C, Results > Reactions > Reaction Forces/Moments S, Rea > Search Reaction Forces/Moments, C, Results > Reactions > Search Reaction Forces/Moments ReaS, Search Reaction Forces/Moments, C, Results > Reactions > Search Reaction Forces/Moments
Def, Deformations, G, Def S, Def > Deformed Shape, C, Results > Deformations > Deformed Shape DeS, Deformed Shape, C, Results > Deformations > Deformed Shape C, Def > Displacement Contour, C, Results > Deformations > Displacement Contour DeC, Displacement Contour, C, Results > Deformations > Displacement Contour D, Def > Search Displacements, C, Results > Deformations > Search Displacements DeD, Search Displacements, C, Results > Deformations > Search Displacements
F, Forces, G, F T, F > Truss, C, Results > Forces > Truss Forces FT, Truss, C, Results > Forces > Truss Forces B, F > Beam Forces/Moments, C, Results > Forces > Beam Forces/Moments FB, Beam Forces/Moments, C, Results > Forces > Beam Forces/Moments BD, F > Beam Diagrams, C, Results > Forces > Beam Diagrams FBD, Beam Diagrams, C, Results > Forces > Beam Diagrams P, F > Plate Forces/Moments, C, Results > Forces > Plate Forces/Moments FP, Plate Forces/Moments, C, Results > Forces > Plate Forces/Moments PD, F > Plate Cutting Line Diagram, C, Results > Forces > Plate Cutting Line Diagram FPD, Plate Cutting Line Diagram, C, Results > Forces > Plate Cutting Line Diagram W, F > Wall Forces/Moments, C, Results > Forces > Wall Forces/Moments FW, Wall Forces/Moments, C, Results > Forces > Wall Forces/Moments WD, F > Wall Diagrams, C, Results > Forces > Wall Diagrams FWD, Wall Diagrams, C, Results > Forces > Wall Diagrams M, F > Member Diagrams, C, Results > Forces > Member Diagrams FM, Member Diagrams, C, Results > Forces > Member Diagrams
St, Stresses, G, St T, St > Truss Stresses, C, Results > Stresses > Truss Stresses StT, Truss Stresses, C, Results > Stresses > Truss Stresses B, St > Beam Stresses, C, Results > Stresses > Beam Stresses StB, Beam Stresses, C, Results > Stresses > Beam Stresses D, St > Beam Stresses Diagram, C, Results > Stresses > Beam Stresses Diagram StD, Beam Stresses Diagram, C, Results > Stresses > Beam Stresses Diagram PSC, St > PSC Stress, C, Results > Stresses > Beam Stresses(PSC) StPC, PSC Stress, C, Results > Stresses > Beam Stresses(PSC) P, St > Plane-Stress/Plate Stresses, C, Results > Stresses > Plane-Stress/Plate Stresses StP, Plane-Stress/Plate Stresses, C, Results > Stresses > Plane-Stress/Plate Stresses PS, St > Plane Strain Stresses, C, Results > Stresses > Plane Strain Stresses StPS, Plane Strain Stresses, C, Results > Stresses > Plane Strain Stresses A, St > Axisymmetric Stresses, C, Results > Stresses > Axisymmetric Stresses StA, Axisymmetric Stresses, C, Results > Stresses > Axisymmetric Stresses S, St > Solid Stresses, C, Results > Stresses > Solid Stresses StS, Solid Stresses, C, Results > Stresses > Solid Stresses
LFS, Local Direction Force Sum, C, Results > Local Direction Force Sum
V, Vibration Mode Shapes, C, Results > Vibration Mode Shapes
Bk, Buckling Mode Shape, C, Results > Buckling Mode Shapes
SG, Stage/Step history Graph, C, Results > Stage/Step history Graph
UKL, Unknown Load Factor, C, Results > unknown Load factor
bgd, Bridge Girder Diagram,C , Results > Bridge Girder Diagrams
MVT, Moving Load Tracer,G , MVT RE, MVT > Reaction, C, Results > Moving Load Tracer > Reactions Dis, MVT > Displacement, C, Results > Moving Load Tracer > Displacements T, MVT > Truss Forces, C, Results > Moving Load Tracer > Truss Forces B, MVT > Beam Force, C, Results > Moving Load Tracer > Beam Forces/Moments MVTB, MV Tracer of Beam, C, Results > Moving Load Tracer > Beam Forces/Moments P, MVT > Plate, C, Results > Moving Load Tracer > Plate Forces/Moment BS, MVT > Beam Stress, C, Results > Moving Load Tracer > Beam Stresses
O, Text Output, C, Results > Text Output
Mo, Model Table, G, Mo N, Mo > Nodes Table, C, Model > Nodes > Nodes Table MoN, Nodes Table, C, Model > Nodes > Nodes Table E, Mo > Elements Table, C, Model > Elements > Elements Table MoE, Elements Table, C, Model > Elements > Elements Table M, Mo > Material Table, C, Model > Properties > Material Table MoM, Material Table, C, Model > Properties > Material Table Se, Mo > Section Table, C, Model > Properties > Section Table MoSe, Section Table, C, Model > Properties > Section Table T, Mo > Thickness Table, C, Model > Properties > Thickness Table MoT, Thickness Table, C, Model > Properties > Thickness Table Su, Mo > Supports Table, C, Model > Boundaries > Supports Table MoSu, Supports Table, C, Model > Boundaries > Supports Table
RT, Result Tables, G, RT R, RT > Reaction, C, Results > Result Tables > Reaction RTR, Reaction, C, Results > Result Tables > Reaction D, RT > Displacements, C, Results > Result Tables > Displacements RTD, Displacements, C, Results > Result Tables > Displacements
T, RT > Truss, G, RTT RTT, Truss, L, RT > Truss Fo, RT > RTT > Force & Stress, C, Results > Result Tables > Truss > Force & Stress RTTFo, Force & Stress, C, Results > Result Tables > Truss > Force & Stress F, RT > RTT > Force, C, Results > Result Tables > Truss > Force RTTF, Force, C, Results > Result Tables > Truss > Force S, RT > RTT > Stress, C, Results > Result Tables > Truss > Stress RTTS, Stress, C, Results > Result Tables > Truss > Stress
B, RT > Beam, G, RTB RTB, Beam, L, RT > RTb Fo, RT > RTB > Force & Stress, C, Results > Result Tables > Beam > Force & Stress RTBFo, Force & Stress, C, Results > Result Tables > Beam > Force & Stress F, RT > RTB > Force, C, Results > Result Tables > Beam > Force RTBF, Force, C, Results > Result Tables > Beam > Force S, RT > RTB > Stress, C, Results > Result Tables > Beam > Stress RTBS, Stress, C, Results > Result Tables > Beam > Stress
P, RT > Plate, G, RTP RTP, Plate, L, RT > Plate F, RT > RTP > Force & Stress, C, Results > Result Tables > Plate > Force & Stress RTPF, Force & Stress, C, Results > Result Tables > Plate > Force & Stress FL, RT > RTP > Force(Local), C, Results > Result Tables > Plate > Force(Local) RTPFL, Force(Local), C, Results > Result Tables > Plate > Force(Local) FG, RT > RTP > Force(Global), C, Results > Result Tables > Plate > Force(Global) RTPFG, Force(Global), C, Results > Result Tables > Plate > Force(Global) FU, RT > RTP > Force(Unit Length), C, Results > Result Tables > Plate > Force(Unit Length) RTPFU, Force(Unit Length), C, Results > Result Tables > Plate > Force(Unit Length) SL, RT > RTP > Stress(Local), C, Results > Result Tables > Plate > Stress(Local) RTPSL, Stress(Local), C, Results > Result Tables > Plate > Stress(Local) SG, RT > RTP > Stress(Global), C , Results > Result Tables > Plate > Stress(Global) RTPSG, Stress(Global), C , Results > Result Tables > Plate > Stress(Global)
V, RT > Vibration Mode Shape, C, Results > Result Tables > Vibration Mode Shape RTV, Vibration Mode Shape, C, Results > Result Tables > Vibration Mode Shape
Deg, Design, G, Deg RC, Deg > RC-Design ,C, Design > KCI-USD03 RCD, RC-Design, C, Design > KCI-USD03 |
적용 예
