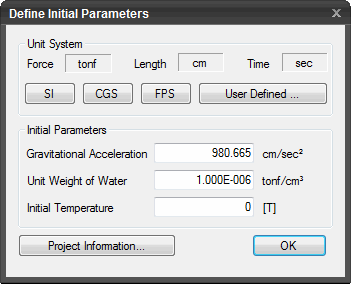

Define Initial Parameters
Define the Initial Parameters for an Analysis Model.
Applicable Modules:
|
Ground |
Slope |
Soft Ground |
Foundation |
Seepage |
Dynamic |
From the Main Menu, select Project Settings > Initial Parameter Definition
From the Command Line, type 'InitialParameter' or 'IP'.
Unit System
Default units: Force-[kN]; Length-[m] and Time-[sec].
|
Unit System |
Force |
Length |
|
SI |
N |
mm |
|
CGS |
kgf |
cm |
|
FPS |
lbf |
ft |

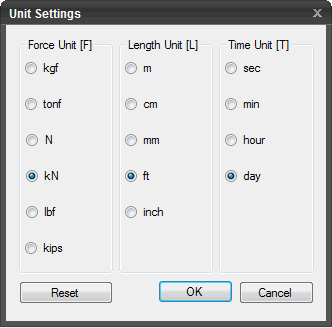

User Defined: The user may define units of Force, Length and Time.
Note: Units of Force and Length can be automatically converted but it is not possible to do so for Units of Time. The parameters such as permeability coefficient etc. are expressed in Time, for which the user should convert the values based on the selected Unit of Time.
Initial Parameters
Enter the parameters which will be used for Analysis.
|
Parameters |
Default Value |
|
Acceleration due to Gravity |
9.807 m/sec^2 |
|
Unit Weight of Water |
9.807 kN/m^2 |
|
Initial Temperature |
0 [T] |
Click
to invoke Project Information dialog box.
Click
to close the box.
