Fluid Boundary

▒ Overview

This tool allows the user to define the boundary conditions between the fluid element and the ground or structural elements and also the free surface.

▒ Methodology

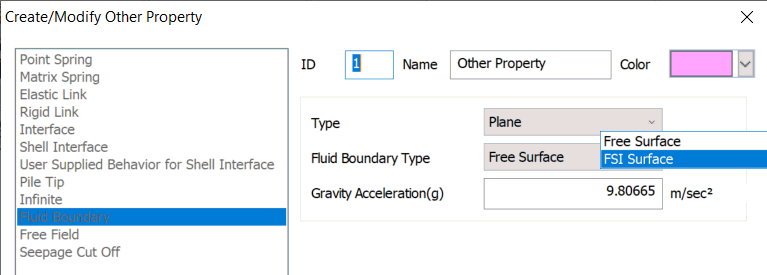

The fluid boundary can be defined using the option below;

The free surface represents the free water surface of the reservoir.

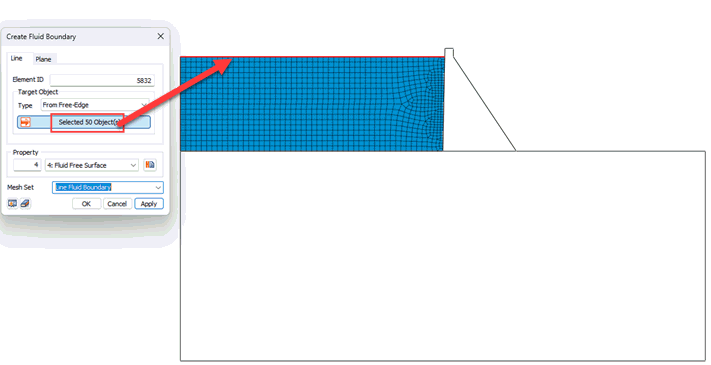

Free Surface Boundary

FSI or Fluid Structure Interaction Boundary needs to be assigned where the fluid medium meets the ground or structural elements.

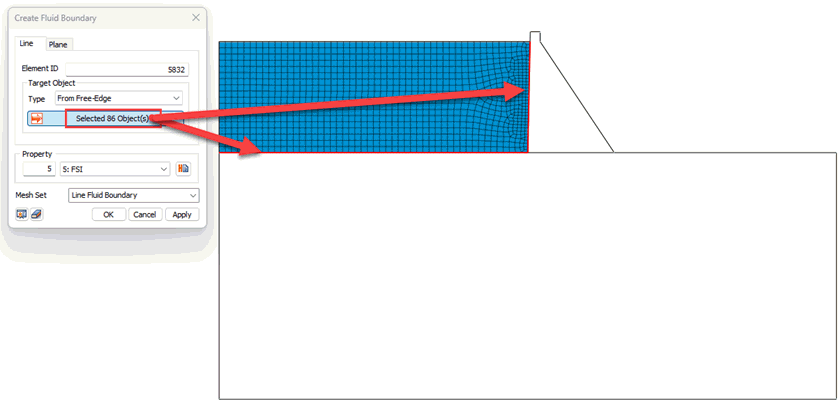

FSI Boundary (Boundary between Fluid Element with Foundation & Dam Block)
