Analysis Case
Create Analysis Cases.
Analysis can be carried out for each Analysis Case.
Applicable Modules:
Ground
|
Slope |
Soft Ground |
Foundation |
Seepage |
Dynamic |
From
the Main
Menu, select Analysis
| Design > Analysis
Control > Analysis Case
(Slope Module), select Analysis | Design > Design and Report
> Analysis Case
(Seepage Module) From the Main Menu, select Boundaries |
Analysis > Analysis
Control > Analysis Case
(Dynamic Module) From the Main Menu, select Loads | Boundaries
| Analysis > Analysis Control > Analysis Case
From the Command Line, type 'AnalysisCase' or 'AC'
Add

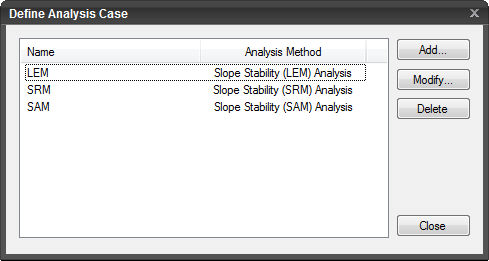

Add a new Analysis Case. Upon clicking
, 'Add/Modify Analysis
Case' window will open up.
Name
Name of an Analysis Case.
Analysis Method
Define the Analysis Method. A total of 16 Analysis Cases are provided which can be selectively used depending on the working module.
Tunnel |
Slope |
Soft Ground |
Foundation |
Seepage |
Dynamic |
Static Nonlinear Analysis |
Slope Stability (SRM) Analysis |
Consolidation (FEM) Analysis |
p-y Nonlinear Analysis |
Seepage (Steady Flow) Analysis |
Eigenvalue Analysis |
Construction Stage Analysis |
Slope Stability (SAM) Analysis |
1D Consolidation Analysis |
|
Seepage (Transient Flow) Analysis |
Response Spectrum Analysis |
|
Slope Stability (LEM) Analysis |
Construction Stage Analysis |
|
Construction Stage Analysis |
Time History Analysis |
|
Construction Stage Analysis |
|
|
|
Ground Response Analysis |
|
|
|
|
|
Equivalent Linear Analysis |
Analysis Control Data
Click
to the right to set details of Analysis Control.
Analysis by each Load Set in the Analysis Model
Analyze the model individually for each Load Set and compile the results accordingly for each Load Set.
Define Analysis Model
Define elements, boundaries and loadings to be used in Analysis in which each Set can be Added and Deleted individually.
Use all Mesh Sets
Use all the Mesh Sets in the Analysis model.
Use all Boundary Sets
Use all the Boundary Sets in the Analysis model.
Use all Load Sets
Use all the Load Sets in the Analysis model.
All Input Data
All the Mesh, Boundary and Load Sets which have been defined are listed.
Data used in Analysis
Drag and drop Mesh, Boundary and Load Sets to be used in analysis from the Set Tree (All Input Data) into the Analysis Set Tree box.
Click to modify the Analysis Case data.
Click to delete the Analysis Case data.
Click the ESC key to close the dialog box.
