Query



Overview

IMG_C_ICON_DOT.gifCheck the Node or Element information.



Methodology

Specify the Query type (Node or Element) of the target and input the Node number or Element number. The particular Node or Element can be directly selected on the work screen. If the Query type is a Node, its coordinates and adjacent elements to that node are printed on the Output window. If the Query type is an Element, the type and shape, volume, aspect ratio, property/material and node connection information are printed.

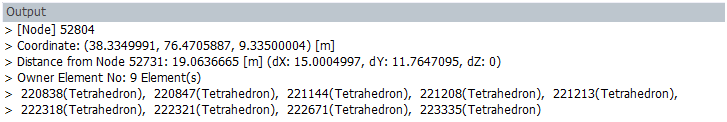

<Node information>

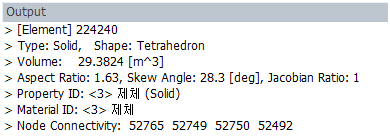

<Element information>
