[Object]
Select
objects to assign arbitrary load.
[Load Direction]
Ref.
CSys
Select
the coordinate system which becomes the reference of the
load components. Click  button to the
right to prompt the Coordinate
System dialog box to add, modify or delete
the reference coordinate system.
[Components]
Enter
the component of the arbitrary point load.
Base
Function
If
the load is defined using a function, select the relevant
function. If it is not been created yet, click the  button to invoke the
Create/Modify Function dialog box.
X
Enter
the component of the arbitrary point load in the first
direction of the selected coordinate system.
Y
Enter
the component of the arbitrary point load in the second
direction of the selected coordinate system.
Z
Enter
the component of the arbitrary point load in the third
direction of the selected coordinate system.
[Load Set]
Select
a Load Set in which the specified load is included.
|

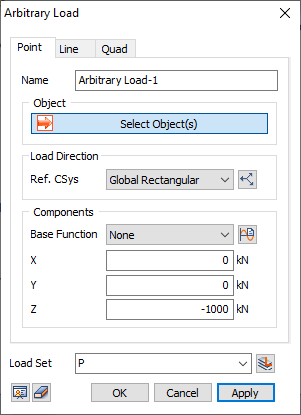

Enter arbitrary
point loads, i.e. point loads that are not located in
element nodes, to elements.
