ERROR [2107]: TOO MANY THICKNESS INTEGRATION POINTS IN PROPERTY ID=# FOR EXPLICIT DYNAMIC ANALYSIS (MAX=31)

Cause

This error is generated when the specified number of integration points in the thickness direction of 2D plate elements is too large (more than 31) in nonlinear explicit dynamic analysis.

Analysis Type

Explicit dynamic analysis (nonlinear explicit transient)

Related Menu

[Not Applicable in FEA NX]

Mesh >> Attribute >> Property >> 2D >> Plate...

Static/Heat Analysis >> Attribute/CSys/Function >> Property >> 2D >> Plate...

Dynamic/Trans.Heat/CFD Analysis >> Attribute/CSys/Function >> Property >> 2D >> Plate...

Remedy

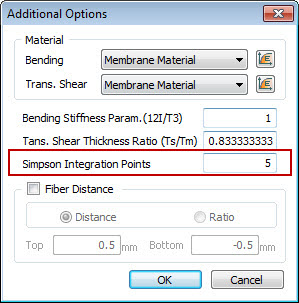

1. In [Additional Options...], reduce the Simpson Integration Points in the thickness direction to a value less than 31.
