ERROR [2132]: ERROR ENCOUNTERED IN MODIFIED CAM CLAY MATERIAL MODEL. TENSILE STRESS IS APPLIED IN ELEMENT ID = # MATERIAL ID = #

Cause

This error is generated when the element assigned by modified cam clay model is under tensile stress. Modifiled cam clay model do not allow tensil stress

Analysis Type

All types of analysis

Related Menu

Mesh >> Prop./CSys./Func. >> Material

Remedy

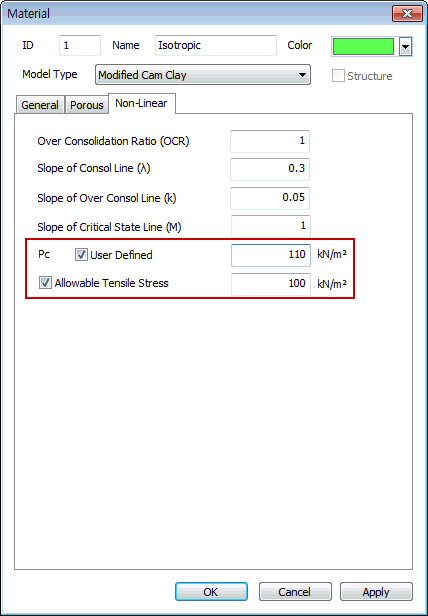

MCC material models fundamentally do not allow tensile stress in the failure criteria (stress-strain relationship). However, various conditions can generate tensile stress, such as the heaving of neighboring ground due to embankment load during consolidation or uplift due to excavation. To overcome the material model limits and increase the applicability, analysis on tensile stress within the 'allowable tensile stress' range can be conducted.

The size of the allowable tensile stress is not specified, and requires repeated analysis to input a larger value than the tensile stress created from the overburden load (embankment) or failure behavior. Hence, the allowable tensile stress value needs to be set, to prevent divergence and halting of analysis results due to tensile failure during analysis.

Hence, the allowable tensile stress value needs to be set, to prevent divergence and halting of analysis results due to tensile failure during analysis.

However, when directly entering the pc (pre-consolidation load), the allowable tensile stress cannot surpass the pc value. When defining using the OCR, the pc value is automatically calculated internally by considering the size of the input allowable tensile stress.
