Batch Conversion from MVLTRC to Static Load (available upon request)

A number of loading conditions of different moving load locations are converted into static loadings and produced as model files of the MCT type. This is an extremely useful feature when a number of loading conditions need to be converted. Conversion is carried out by loading locations, result types, etc. all at once.

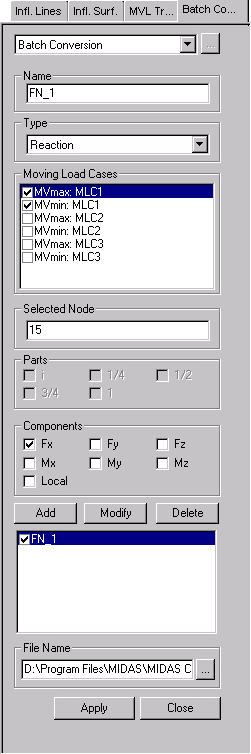

From the Main Menu select Results > Batch Conversion from MVLTRC to Static Load.

Name

Enter the name of the batch conversion.

Type

Select a result type among Reaction, Displacement, Truss Force/Moment, Beam Force/Moment, Plate Force/Moment and Beam Stresses.

Moving Load Cases

Select desired moving load cases.

Selected Node, Selected Element

Enter the node numbers where reaction or displacement results are required.

Enter the element numbers where internal force or stress results are required.

Parts

Assign the desired positions of elements for producing results.

Components

Assign the result components desired for producing results. Depending on the Type selected (Reaction, Displacement, Truss Force/Moment, Beam Force/Moment, Plate Force/Moment & Beam Stresses) components are automatically altered.

: Select to create a new batch conversion function.

: Modify a previously created batch conversion function.

: Delete a previously created batch conversion function.

File Name

Enter the file path and name of the MCT file to be created.
