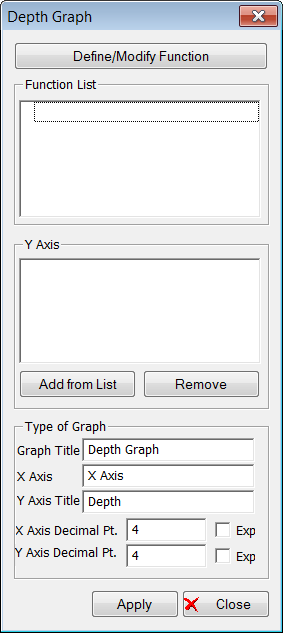

Result Graph : Depth Graph

Function

Defines the function for the layer depth result.

Call

Equivalent Linear Analysis Module : Result > Result Graph > Depth Graph

Define/Modify Function

Define or modify the display function of the layer depth result for the layer being displayed on a graph

Function List

The defined graph display function list is arranged, and the function to be displayed is checked.


Y Axis

Define the display function to show on the Y Axis of the layer's depth

Add from List

Select the defined display function and add

Remove

Delete the selected display function

Type of Graph

Assign the display form of the coordinate axis or enter the title of the layer depth graph

Graph Title

Enter the title for the layer depth graph

X Axis Title

Enter the X Axis title

Y Axis Title

Enter the Y Axis title

X Axis Decimal Pt.

Assign the X Axis decimal point.  Exp : Assign the numerical form

Y Axis Decimal Pt.

Assign the Y Axis decimal point.  Exp : Assign the numerical form
