Multi Step Iso Surface



Overview

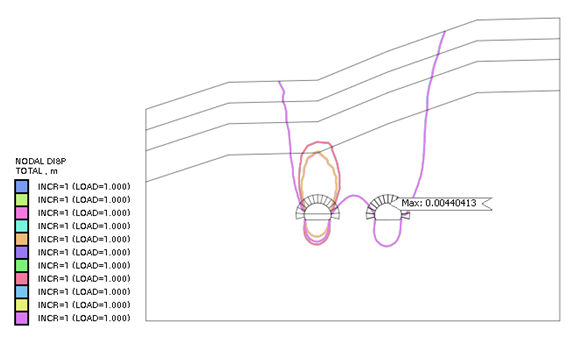

IMG_C_ICON_DOT.gifSimultaneously display the iso-surfaces obtained from multiple analysis steps.



Methodology

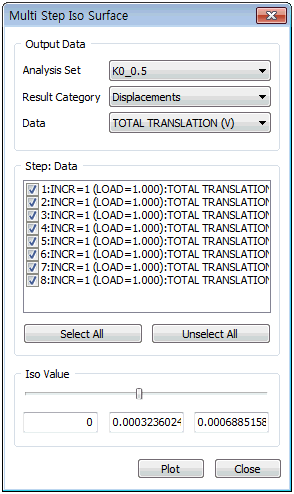

Select the analysis condition to display the iso-surface on and specify the result type, result value and step. Input the iso-value. The iso-value can be selected using the bar between the maximum/minimum values of the total result.
