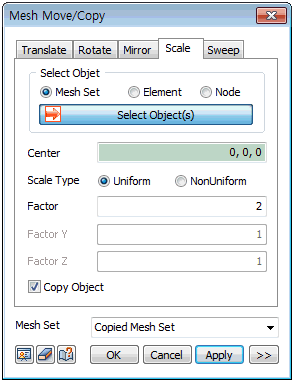

Select the node, element or mesh set to scale up/down and specify the scale center. Apply a constant ratio with respect to the scale center or selectively apply a scale factor on the axial direction of the GCS.
Check the copy target option to use scale up/down and copy simultaneously
Scale type
[Uniform] : Scale up/down the selected target in all axial directions of the GCS uniformly.
[NonUniform] : The scale factor can be applied differently for each axial direction on the GCS.
|
Scale up/down a node, element or mesh set with reference to a scale center.
