Deformed Shape

Deform

Display the deformed shape of the model.

Deformation Scale Factor
Magnify or reduce the size of the displacement graphically displayed in the model window.

Deformation Type

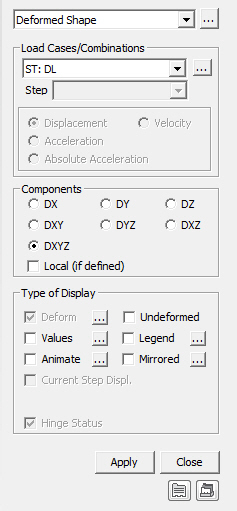

Select the type of displacement display

Nodal Deform: Display the deformed shape representing only the nodal displacements.

Real Deform: Display the detail deformed shape including the calculated displacements along the sections between the end nodes in addition to the nodal displacements for beam elements.

Real Displacement (Auto-Scale off): The true deformation of the structure is graphically represented without magnifying or reducing it. This option is typically used for geometric nonlinear analysis reflecting large displacement.

Relative Displacement: The deformation of the structure is graphically represented relative to the minimum nodal displacement, which is set to zero.

Undeformed

Overlap the undeformed and deformed shapes of the model.

The type of display for the undeformed shape of the model can be controlled in Display Option.

Values

Display the nodal displacements in numerical values.
The font and color of the numbers can be controlled in Display Option.

Decimal Points: Assign decimal points for the displayed numbers

Exp.: Express as exponentials


Min & Max: Display the maximum and minimum values

Abs Max: Display the absolute maximum value

Max: Display only the maximum value

Min: Display only the minimum value

Limit Scale(%): Set the screen display limit for nodal displacements relative to the selected maximum or minimum value


Set Orientation: Display orientation of numerical values

Note
The default Decimal Points can be controlled in "Preferences".
Set Orientation = 0 horizontally displays the numerical values to the right of nodes or elements.
The orientation angle represents the counter-clockwise direction, which may be used to enhance the readability of the numbers.

Legend

Display various references related to analysis results to the right or left of the working window.

Legend Position: Position of the legend in the display window

Rank Value Type: Specify a type of values in the Legend and the number of decimal points.

Animate

Dynamically simulate the transition process.
Click then click Record to the right of the Animation control board at the bottom of the working window.

Animation Mode: Determine the type of animation for analysis results.

Animate Contour: Option to change the color of the contour representing the transition according to the magnitudes of variation

Repeat Half/Full Cycle: Select the repetition cycle for the dynamic representation of the transition

Note
Select 'Half Cycle' for the transient shapes of a structure and 'Full Cycle' for dynamically simulating vibration modes or buckling modes.


AVI Options: Enter the options required to produce the animation window.

Bits per Pixel: Number of bits per pixel to create the default window for animation

: Assign the method of compressing image data

Frames per Half Cycle (3~300): Number of frames to simulate a 'Half Cycle'

Frames per Second (5~60): Number of frames per second to present dynamic simulation


Construction Stage Option: Select the animation options when the construction stage analysis is performed.

Stage Animation: Animations by construction stages

Current Stage-Step: Animations by Steps in the current construction stage

From ~ To: Starting and ending construction stages or steps for animations

Mirrored

"Mirrored" allows the user to expand the analysis results obtained from a half or quarter model into the results for the full model by reflecting planes.

Half Model Mirroring

Quarter Model Mirroring

Mirror by: Specify the mirror plane (s) by designating a plane and a coordinate in the direction perpendicular to the plane in GCS.

Current Step Disp.

Produce the displacements pertaining to the selected step of the construction stage if a construction stage analysis has been performed.

Pushover Hinge

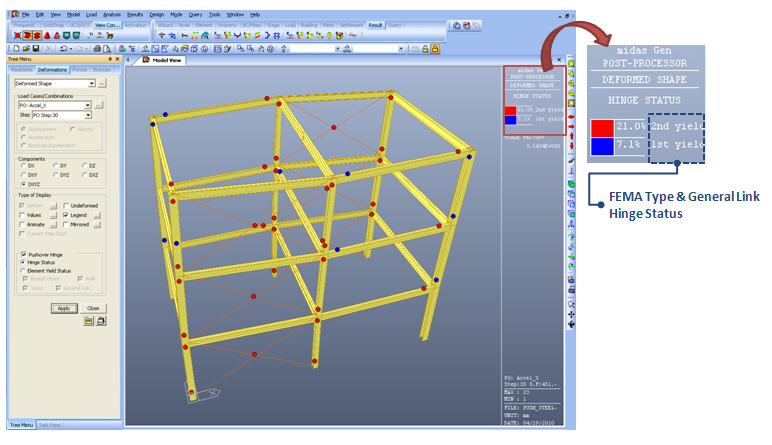

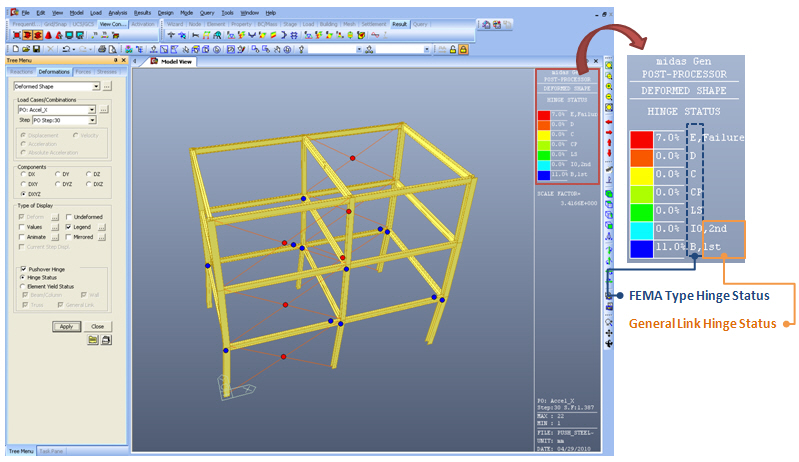

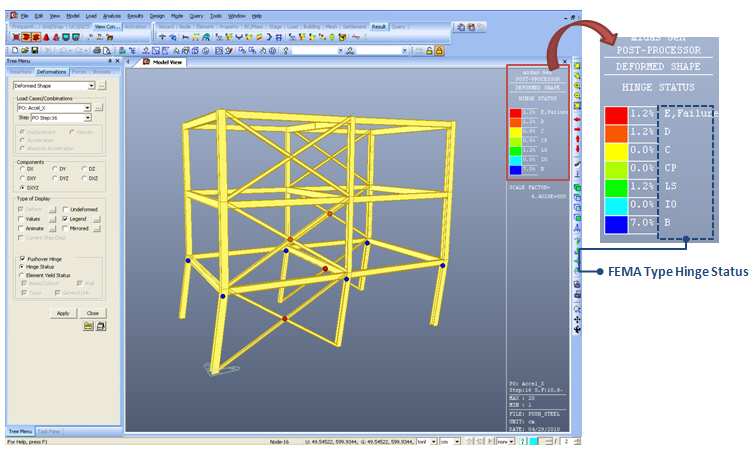

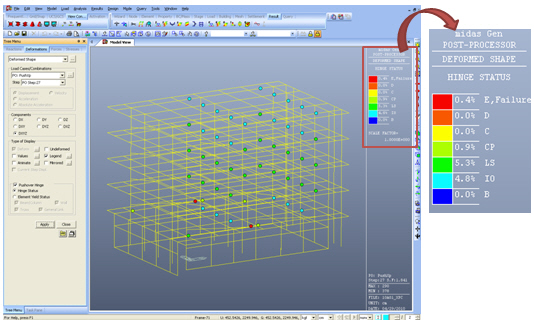

Hinge status: The status of hinges formed by pushover analysis is produced.

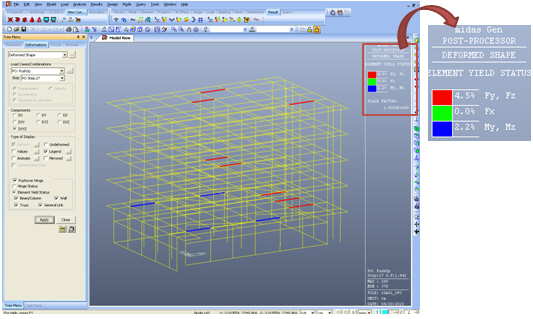

Element Yield Status: The yield status of components (Fx, Fy & Fz, Mx, and My & Mz)by pushover analysis is produced. This option is useful in verifying  if a shear failure occurred in any element.

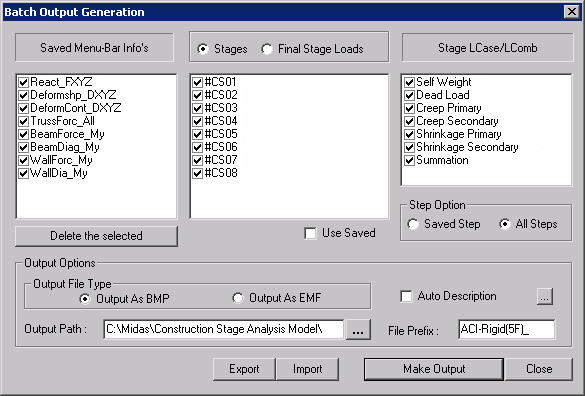

Assign a Base File Name under which the types of results (selection data in the Batch Output Generation dialog box for graphic outputs) are stored.

Specify the Base Files to perform Batch Output Generation, construction stages, load cases (combinations), steps, etc. in the following dialog box.
