Scale the target
object with reference to a point. This command can be
applied regardless of the type of shape and the [Copy]
option can be used to leave the original object and only
move the copied object.
▒

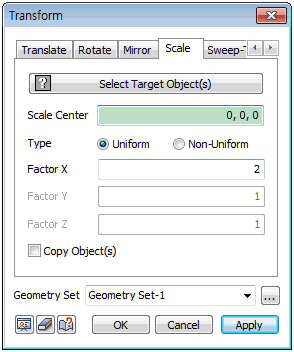

Methodology
Select
the shape to scale and specify the reference point coordinates
to scale up or down.
There
are 2 scale methods; [Uniform] and [Non-Uniform]
[Uniform]
: All axis's are scaled by the same amount.
[Non-Uniform]
: Each axis direction (GCS standard) can be scaled by
a different factor.
Geometry set
Register
the geometry shape created from the scale command on the
Geometry set. The user can specify the name of the Geometry
set.
