Preferences







Set all types of initial preferences for general operation of MIDAS/Gen.



The preferences set by the command are listed below. Use the Tree Menu located to the left of the dialog box to check or modify the defaults.



Environment



General: Provide the user's name, company logo, directory for temporary files and temporary file saving requirements



View: Defaults for the working window



Tolerance Data: Tolerance assignment for merging nodes or intersecting elements



Property: Data Base assignment for material properties and member properties



Load: Predefine the magnitudes of floor loads in the database.



Results: When the method of load combination is Envelope, output the signs of analysis results.



Design: Assign applicable design standards for different material types and material properties for structural steel



Notice: Check the latest news uploaded on the MIDAS User website.



Graphics: Specify the Printout option.



Output Formats



Formats - Dim. & Others: Assignment of format for numerical values to be used for producing model data and analysis results



Formats - Forces







From the Main Menu select Tools > Preferences.







Display the following Preferences dialog box:

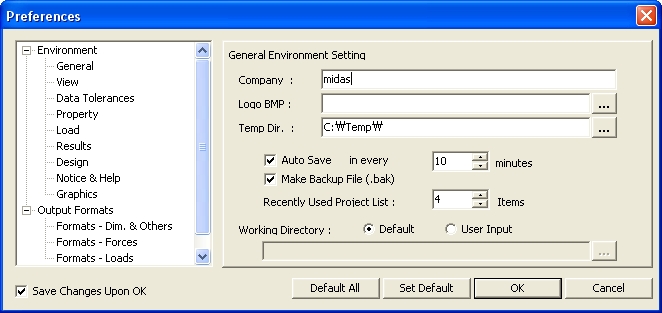

Preferences dialog box



Select the items in the Tree Menu to the left of the dialog box to display the corresponding features to the right.

Check Save Changes Upon OK and click to immediately effect the current settings and save the changes in Window Registry for subsequent uses of MIDAS/Gen.



Default All: Set all the preferences Settings as default.



Set Default: Set the current preferences Setting as default.





Details Setting

Environment > General

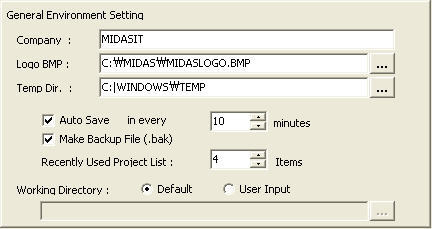

General Environment Setting dialog box



Company: User's name



Logo BMP: Specify a file containing the company logo that will be printed in various analysis/design results.



Temp Dir: Assign a directory in which temporary files are created and deleted during the execution of MIDAS/Gen.



Note
Temp Dir shall be assigned to a drive with sufficient disk space. If the disk space is insufficient, the execution will be slow and may also cause problems.



Auto Save: Auto-save the project file at a given time-interval.



Make Backup File (.bak): Save a backup file (.bak) whenever the file is changed and saved.



Recently Used Project List: List the prescribed number of files recently used at the bottom of the File Menu



Working Directory: Display the directory when opening and closing a file.

Environment > View

Set the default working window when creating a new project file or opening an existing file.

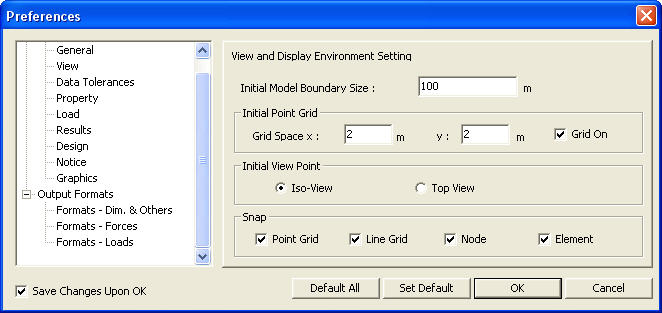

View and Display Environment Setting dialog box



Initial Model Boundary Size: Assign the size of the default window when creating a new project



Initial Point Grid

Grid Space X: Point Grid spacing in UCS x-direction when creating a new project. It can be temporarily modified using Set Point Grid.

Grid Space Y: Point Grid spacing in UCS y-direction when creating a new project. It can be temporarily modified using Set Point Grid.



Grid on: Check in the option to display the Point Grid on the screen when creating a new project file or opening an existing file (refer to "Grids").



Initial View Point

Check in the option to display the model window in ISO View or Top View when creating a new project file or opening an existing file (refer to "View Point").



Snap

Check in the option to activate Snap for Point Grid, Line Grid, Node and Element when creating a new project file or opening an existing file (refer to "Snap").

Environment > Data Tolerances

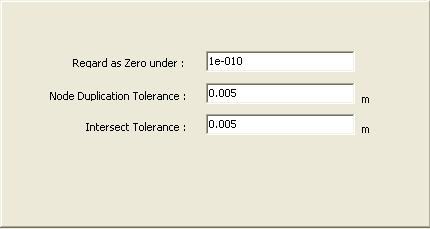

Data Tolerances dialog box



Regard as Zero under

Treat the values less than the specified as "0"



Node Duplication Tolerance

Specify a tolerance for merging more than one node into a single node. The tolerance is applicable when combining or copying nodes.



Intersect Tolerance

Specify an intersect tolerance for merging contiguous nodes and elements or between elements when executing Intersect.



Environment > Property

Specify data bases for material and section properties.

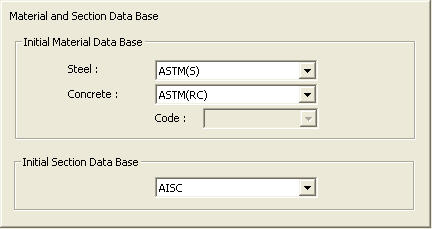

Material and Section Data Base dialog box

Environment > Load

The floor loads predefined in the database can be recalled from Load >Define Floor Load Type.

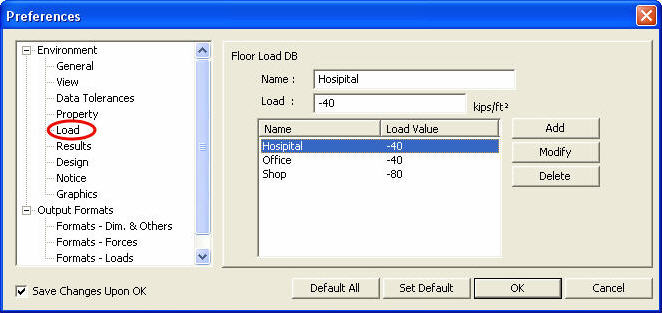

Floor Load DB dialog box

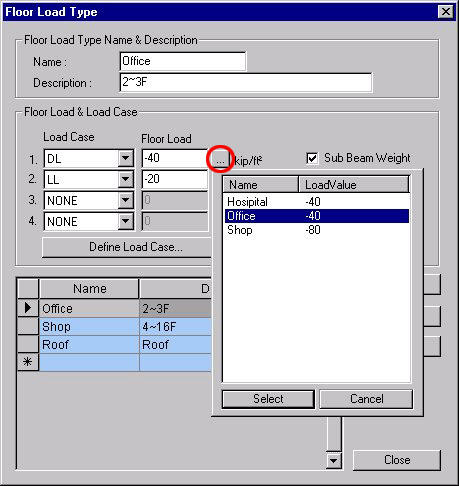

Define Floor Load Type dialog box



: Enter the loads per unit area using the floor loads predefined in Tools>Preferences- Load.



Environment > Results



: If the method of load combination of analysis results is Envelope, and this option is selected, the values in "Text Output" are produced with signs instead of the absolute values of max and min.

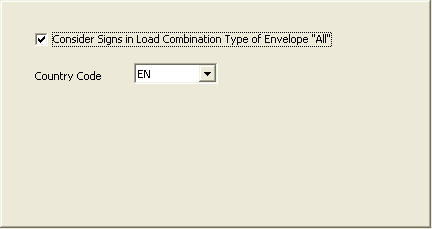

Result dialog box

Environment > Design

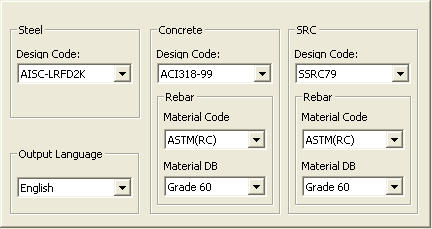

Design dialog box

Revision of V.7.6.1

Environment > Notice & Help

Show Notice : When MIDAS/Gen is executed, the latest program upgrade information on the homepage of MIDASoft, Inc can be checked.



Use Local Help : Check on to use the Local Help (MidasGen.chm) as a default manual. If this option is checked off, the web-based online manual is invoked.

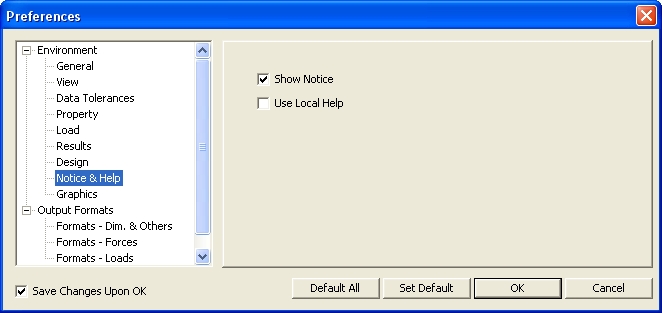

Notice dialog box



Environment > Graphics

Graphics Environment Setting

Specify the Buffer Size for graphic display.



Enable Vector-Based Print Out

It may take time to print out if Open-GL that the program uses as default is used. Select this option to use the Vector-Based Engine of low resolution to reduce time for printout.



Enable Low Resolution Print Out

Select this option to optimize the background when the Vector-Based Print Out option is enabled.

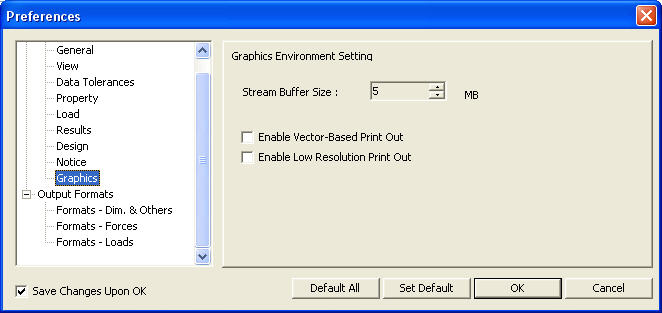

Graphics dialog box

Output Formats > Formats - Dim & Others

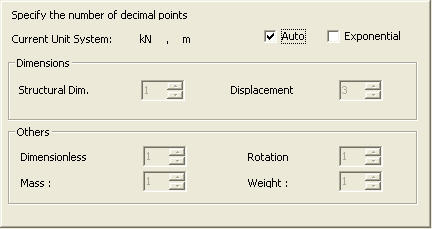

Formats (Dim & Others) dialog box



Specify the number of decimal points when producing analysis results.



If Auto is checked in, the number of decimal points for each numerical value is auto-fitted by the program according to the pre-defined format as per the selected unit system. If Auto is unchecked, the user may specify the number of decimal points for each item.



If Exponential is checked in, the specified numbers of decimal points are ignored and all the numerical values are produced in exponentials.



Output Formats > Formats - Forces

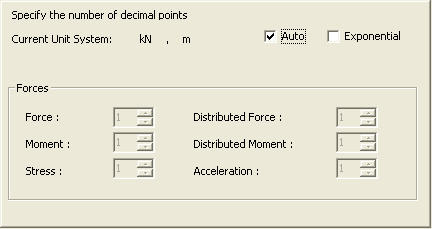

Formats (Forces) dialog box

Output Formats > Formats - Loads

Specify an output format for displaying loads.

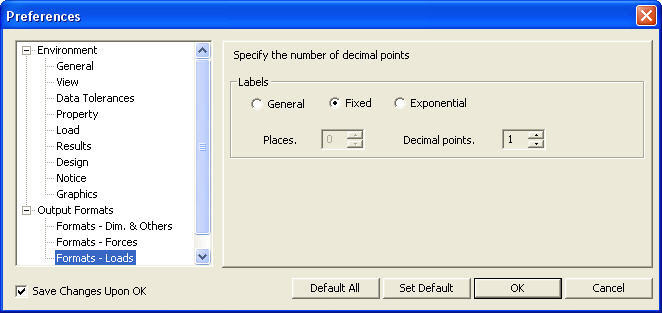

Formats (Loads) dialog box



General: The number of significant digits



Fixed: The number of decimal places



Exponential: The number of decimal places of load values to be displayed in exponential
