Explode



Overview

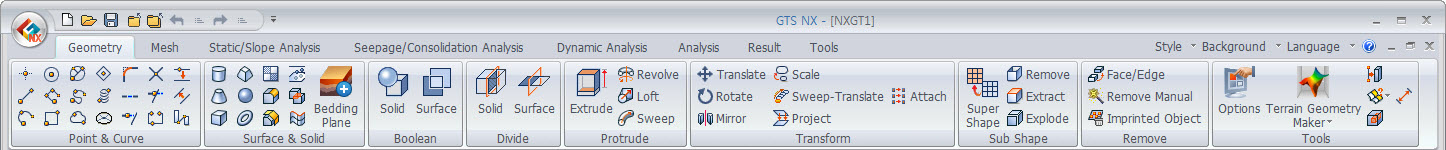

IMG_C_ICON_DOT.gifDisassemble a selected shape into its sub-shapes.



Methodology



Select the shape and set the disassemble level to disassemble into its sub-shapes.

The disassemble level can be selected from [Sub Shpes], [Solid], [Shell], [Face], [Wire], [Edge] and [Point].

Disassemble is applied to target shapes that have a higher rank than the disassemble level. In other words, if the shape is solid, it can be divided into shapes that have a lower rank than a solid such as [Shell], [Face], [Wire], [Edge] or [Point].

[Sub Shapes] is the option that disassembles the shape by the geometry rank just below it.

Compound shapes are a set of simple shapes and applying [Sub Shapes] disassembles each shape in the compound individually.




The geometry ranking is as follows: [Solid] > [Shell] > [Face] > [Wire] > [Edge] > [Point].


For example, the sub-shapes of a shape consisting of faces and solids are as follows.

The properties of the selected shape can be verified from Tools > Show/hide > Properties.






Shape

Face

Sub-Shape

Wire

1

Edge

5

Point

5






Shape

Face

Sub-Shape

Wire

2

Edge

2

Point

2






Shape

Face

Sub-Shape

Face

2

Wire

2

Edge

7

Point

6






Shape

Face

Sub-Shape

Shell

1

Face

6

Wire

6

Edge

12

Point

8
