Settlement Profile: Define Settlement Profile Grid

Function

Define a virtual grid to evaluate settlement in the form of a diagram or a contour.

Call

Result > Settlement Profile > Define Settlement Profile Grid

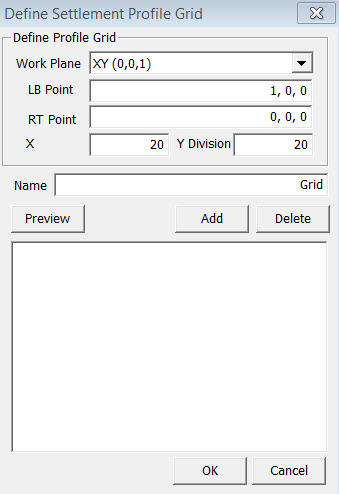

<Define Settlement Profile Grid>

Define Profile Gird

Work Plane

Define a plane with respect to the Work Plane coordinate system.  The Work Plane must be previously moved to the desired plane for the virtual grid.
LB Point

Enter the coordinates of the bottom left corner of the gird. Snap is applicable for the input
RT Point

Enter the coordinates of the top right corner of the gird. Snap is applicable for the input.
X division

Enter the number of grid divisions in the X-direction.
Y division

Enter the number of grid divisions in the Y-direction.


Name

Enter the name of the defined grid.


Preview

Preview the defined grid.


Add

Include the defined grid in the list. The grid can be checked in Settlement Profile.


Delete

Delete the selected grid definition.
