Output
the Slope stability analysis results that incorporate
the limit equilibrium method indicators. Specify the analyzed
analysis case and analysis step to check the results on
the virtual fracture plane defined in the stage. Check
[Boundary Set Label] and specify the Boundary set to identify
the boundary conditions of the virtual fracture plane
specified on the screen.
Use
Min, Max to check the area where the maximum/minimum values
occur, and use the Drawing option to modify the thickness,
safety factor, size and color of the fracture plane at
that point.

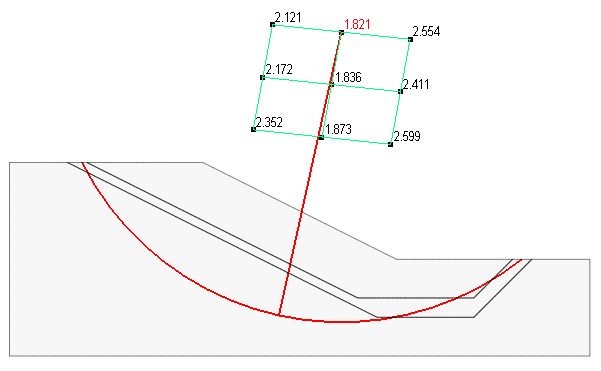

< SAM result> |
Output the Slope
stability analysis results that incorporate the limit
equilibrium method indicators.
