<Undeformed shape>                                                          <Deformed shape>

<Deformed + Undeformed (Wire)>                            <Deformed + Undeformed (Feature)>

<Deform + Undeformed (Shading)>

Undeformed

The deformed shape is not drawn. In other words, the original shape before deformation is graphically expressed.

Deformed

Output the deformed shape.

Deformed + Undeformed (Wire)

Output both the deformed shape and un-deformed shape (as a Wire).

Deformed + Undeformed (Feature)

Output both the deformed shape and un-deformed shape (as a Feature boundary line).

Deformed + Undeformed (Shading)

Output both the deformed shape and un-deformed shape (using the geometry shape colors).

Deformed + Undeformed (Transparent)

Output both the deformed shape and un-deformed shape (using the geometry shape colors under the transparency condition).

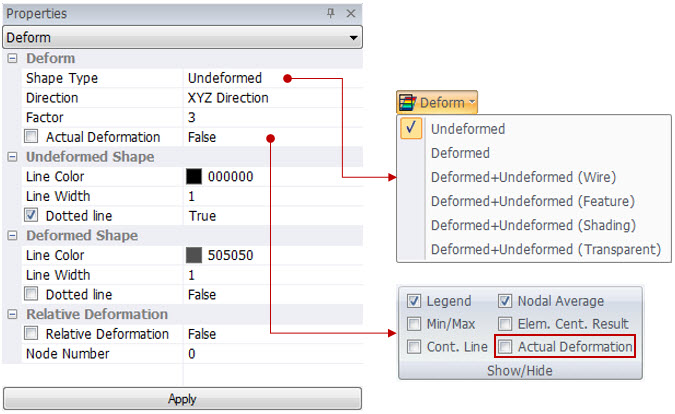

Deform  Properties

Specify the detailed properties for graphic processing of deformed shapes.

Deform

• Shape Type

Graphically display the results with reference to the selected deformed shape.

• Factor

Input the scale value used when displaying the deformed shape on the screen.

• Actual Deformation

Checked: Express the actual deformation.

UnChecked: The program scales the displacement using an arbitrary scale to easily determine the deformed shape (Scale the maximum displacement to 1/20 size of the entire model).

Undeformed/Deformed shape

Specify the method used to display both the deformed shape and un-deformed shape simultaneously on the screen. It is used when applying Deformed + Undeformed (Wire) or Deformed + Undeformed (Feature).

• Line Color

Specify the color of the line used to display the un-deformed/deformed shape.

• Line Width

Specify the thickness of the line used to express the un-deformed/deformed shape.

• Dotted Line

Switches to dotted type of the line used to display  the un-deformed/deformed shape.

Relative Deformation

• Relative Deformation

Express the node selected from the node number as a relative deformation.

• Node number

Select the reference point of the relative deformation.

Relative deformation usage

The standard for relative displacement examination can be selected to examine the deformed shape.

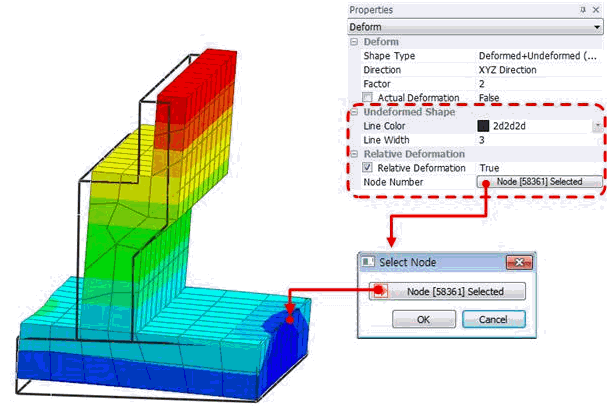

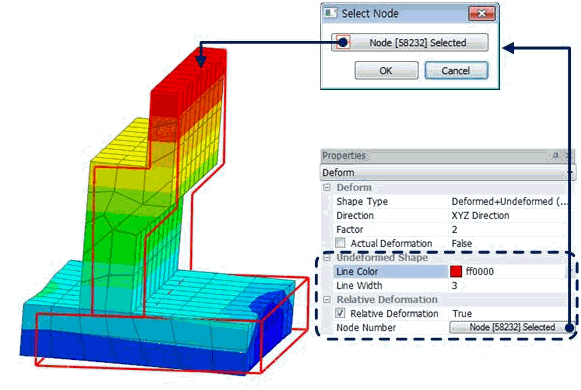

<Relative deformation based on bottom>                      <Relative deformation based on top>

                                                                            <Original>                                                      <based on Node 5232>                                       <based on Node 58361>
