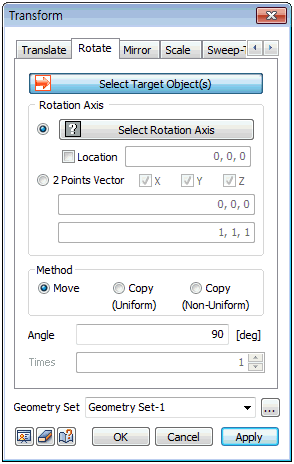

Move or copy the object by rotation. This command can be applied regardless of the type of shape and the [Copy] option can be used to leave the original object and only move the copied object.

Select the shape to rotate and specify the revolution axis. The revolution axis can be defined in 2 ways:

1. Check [Location] to specify the Start point of the revolution axis directly. Entering the position moves the revolution axis to that value.

2. [2 point vector] : Determine the direction vector for rotation extend by entering the coordinates of its Start and End points. The user can also directly click on the work screen to specify the Start and End points.

The target object can be moved/copied using [Move], [Copy (Uniform)] and [Copy (Non-Uniform)].

[Move]

Enter the angle directly to rotate.

[Copy (Uniform)]

The repeat option is activated and rotation copies the target object repeatedly by the entered number.

[Copy (Non-Uniform)]

List the rotation angle by a space or comma (,) and when repeating, enter number @ distance

(Example : 10,20,25,25,25 or 10 20 3@25).

Geometry set

Register the geometry shape created from the rotate command on the Geometry set. The user can specify the name of the Geometry set.
