Use Contour ON/OFF to decide whether to output the contour on the screen.

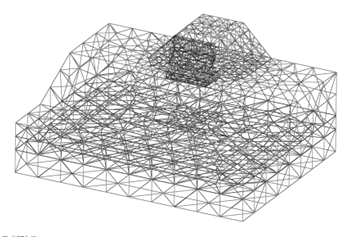

<Contour On>                                          <Contour OFF>

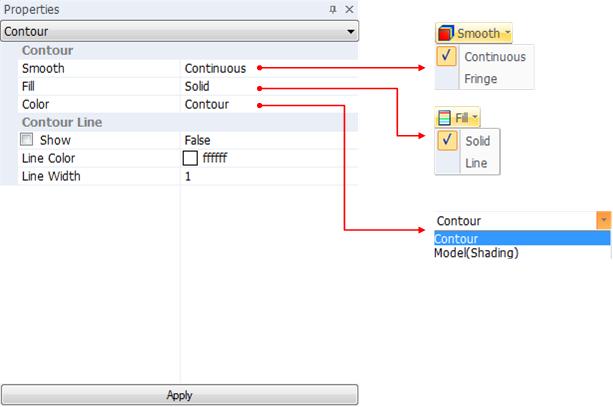

Contour property

The contours can be overlapped with the graphic display setting function to output more graphic results

[Color]

Display the color of the selected results as the contour or model mesh color.

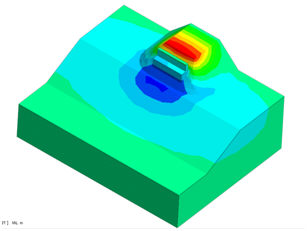

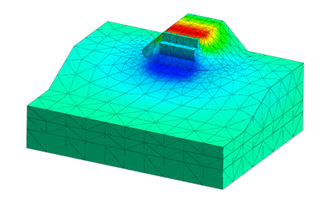

<Contour>                                                <Model(Shading)>

• Contour

Plot the result color as the result contour color.

• Model (Shading)

Plot the result color as the model mesh color. The analysis color can be displayed as result edge, deformed shape and fill type line draw, but not contour types.

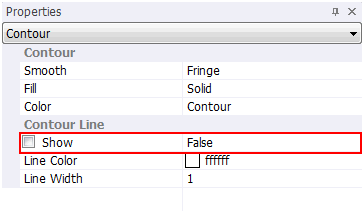

Setting the contour line

The show line, color, thickness in the contour properties can be adjusted to clearly express the contour distribution.

<Show contour line - unchecked>

<Show contour line- checked>
