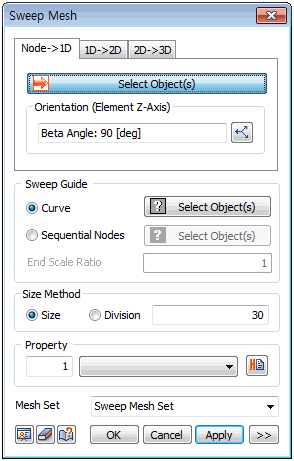

Select
the element node to extrude and select the sweep guide
curve or node positions that can substitute the guide
curve. Define the mesh size directly or input the number
of divisions for the selected curve.
Sweep Guide
[Curve]
Only
1 guide curve can be selected. Hence, the curves for a
complex shape need to be created into a single wire in
advance.
[Sequential
Nodes]
When
selecting multiple nodes, be aware that the extrude direction
is specified by the selection order. When selecting the
nodes directly, the spacing between the nodes becomes
the element size so the size does not need to be set. |
Generate a 1D
element by sweeping a node about a selected guide curve.
It is useful to create complex elements continuously.
