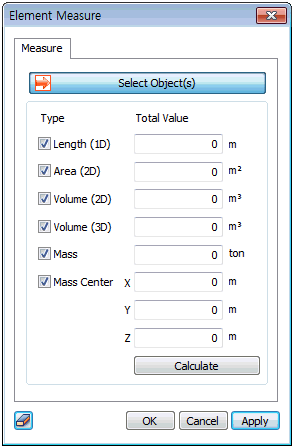

Measure the material
and geometric information of a selected element. It is
useful to check the Length (1D), Area (2D) and Volume
(3D) of an element. Select the element to be measured
and use calculate to check the total sum of all selected
elements. For Volume (2D), use the property (thickness)
information of a 2D element and the element area to calculate
the hypothetical volume.
