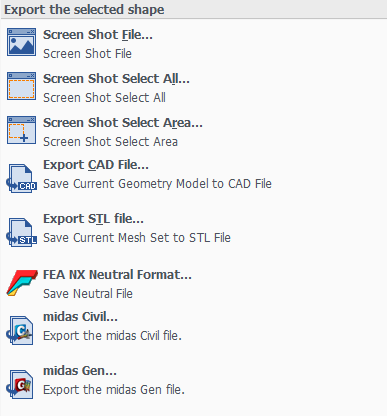

This function can capture the work plane or export geometric shapes and meshes.

The work plane can be saved using [Screen Shot file]. [Screen Shot Select All], [Screen Shot Selected Area] tabs.

The [Screen Shot file] tab only saves the work plane and the [Screen Shot Select All] tab saves the whole images. The [Screen Shot Selected Area] tab saves the area selected by the user. PNG, JPG, BMP, GIF image file formats are supported.

CAD geometric shapes and meshes on the work plane can be exported. CAD geometric shapes are exported as Parasolid files (*.x_t, *.x_b) and meshes can be exported as a STL file (*.stl) or a neutral file (*.fpn) supported on other midas programs (GTS NX/NFX/FEA/SoilWorks) and non-MIdas programs.

Export FEA NX Neutral Format

The FPN format links the model information file created on FEA NX to midas family programs (GTS NX, FEA, NFX, SoilWorks, GeoXD). This file format also enables user to exchange information between different programs using text format.

Export MIDAS Civil

This format links the model information file created on FEA NX to midas family program (midas Civil) as *.mct formation.

Export MIDAS Gen

This format links the model information file created on FEA NX to midas family program (midas Gen) as *.mgt formation.
