Measure the shortest distance or angle between shapes using various methods.

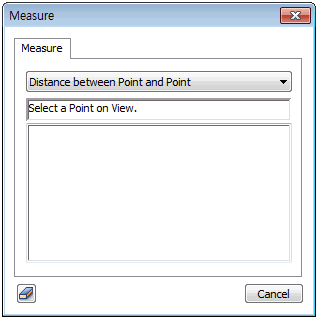

Measure the distance or angle by selecting a shape’s point, line, face etc. on the screen.

The distance can be measured using [Distance between point and point], [Distance between point and Edge], [Distance between point and face], [Distance between edge and edge], [Distance between edge and face], [Distance between face and face]. The angle can be measured using [Angle between three points].

Checking the needed snaps with Define snap () makes it easier to select points on the screen.
