Copy the generated
mesh set. The copied mesh can be used in various ways.
For example, the mesh can be generated without further
geometrical modeling when comparing different materials
or properties on each copied element to the original element;
or when the same element is uniformly placed for each
construction step.
▒
Methodology

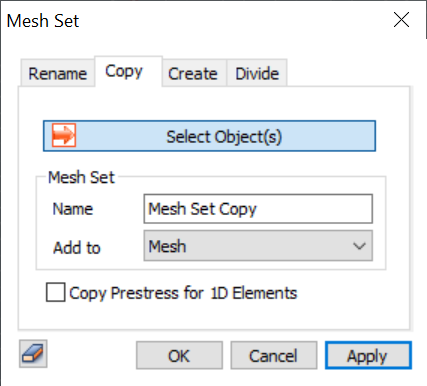

Select
the target mesh set and input the new position
to copy all the nodes and elements of the original
mesh set to the new position 1 by 1.
Copy Prestress for
1D Elements
If the anchor is modeled
as a 1D element and the prestress load is entered,
the load information is also copied when copying
the anchor.
Copy the generated
mesh set. The copied mesh can be used in various ways.
For example, the mesh can be generated without further
geometrical modeling when comparing different materials
or properties on each copied element to the original element;
or when the same element is uniformly placed for each
construction step.
