Display the results
by attaching a result tag on the desired node or element.
▒Methodology
Design approach
- table and graph results in post processing

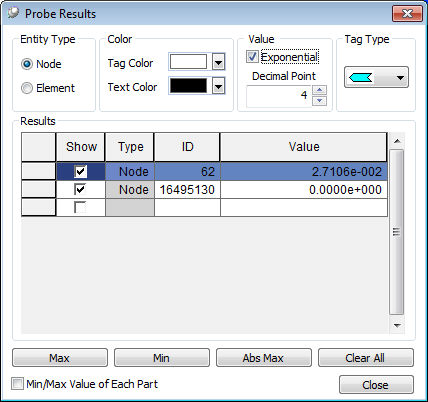

Select
the node or element on the screen to create a
probe. The user can edit the tag color, text color,
tag type etc.
The information and values
of a node/element, where the maximum, minimum,
maximum absolute values are generated, on the
current result can be checked, and the minimum,
maximum values of each mesh set can be checked.

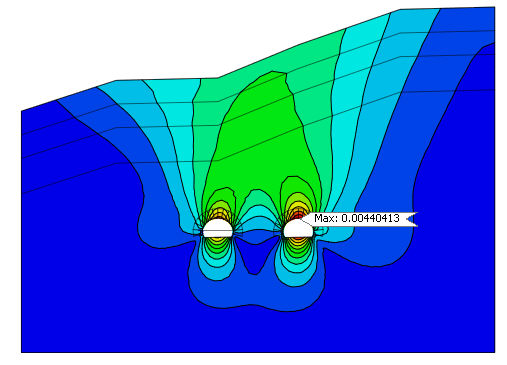

Display the results
by attaching a result tag on the desired node or element.
