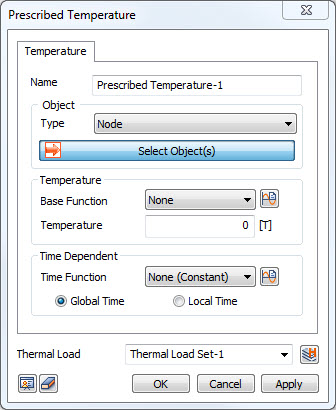

Name
Enter the name of the prescribed
temperature condition.
Type
The applied temperature is
defined on the node, but the selection target can also
be set as a geometry shape (edge, surface etc.) or using
auto-select free face nodes.
Temperature
Enter the temperature value for
the selected target objects.
Base
Function
Set a spatial function or a non-spatial
function as a base function to be applied to the magnitude
of temperature.
Time Function
Select the function to be applied
to time.
Global Time
The time applied to the time function
is based on the total analysis time.
Local Time
The time
applied to the time function is based on the subcase time.
Thermal
Load
Register
the specified fixed temperature conditions to a desired
thermal load set.
The user may assign any name to the load set. |
